Overnight storage

CAUTION: Improper handling or storage can internally damage the airbag assembly, making it inoperative. If you suspect the airbag assembly has been damaged, install a new unit and refer to the Deployment/Disposal Procedures for disposing of the damaged airbag.

Overnight storage

Airbag modules are classed as explosive articles and as such must be stored in an approved secure steel cabinet which has been registered by the local authority.

SRS HARNESS

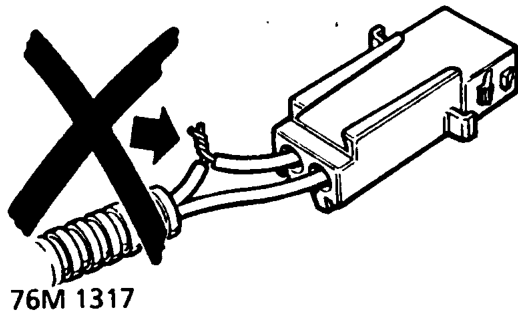

• Never attempt to modify, splice or repair SRS wiring. Never install electronic equipment such as; a mobile telephone, two way radio or in car entertainment system in such a way that it interferes electrically with the airbag harness.

NOTE: SRS wiring can be identified by special yellow outer protective covering.

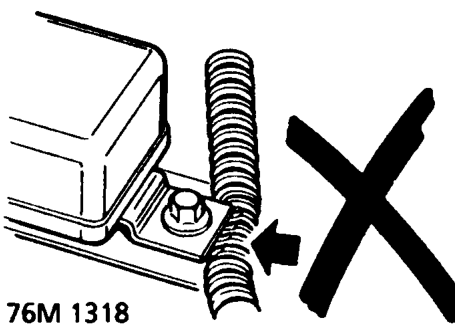

• Always ensure SRS harnesses are routed correctly. Be careful to avoid trapping or pinching the SRS harness. Look out for possible points of chafing.
• Make sure all SRS earth locations are clean and earths are securely fastened for optimum metal-to-metal contact. Poor earthing can cause intermittent problems that are difficult to diagnose.

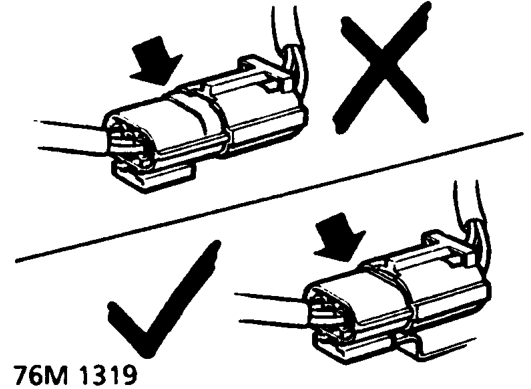

• Ensure all airbag harness connectors are mated correctly and securely fastened. Do not leave the connectors hanging loose.
