Warning labels

WARNING LABELS

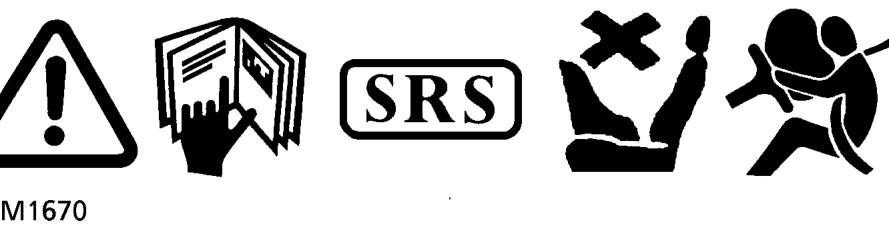

A combination of symbols/icons are displayed (either in a suitable, prominent position or are attached to the component itself) to indicate: (a) Type of SRS fitted (driver only, driver and passenger); (b) The need for caution when working in close proximity to SRS components; (c) The publication where suitable reference and advice can be found (usually Workshop Manual or Owner’s Handbook).

NOTE: It is imperative that before any work is undertaken on the SRS system that the appropriate publication is read thoroughly.

The following list indicates current locations for warning labels. Exact positions may vary dependent on legislation and market trends.

1. Bonnet locking platform

Refer to the Owner’s Handbook for information on the airbag system.

2. Sun visor

Refer to the Owner’s Handbook for information on the airbag system.

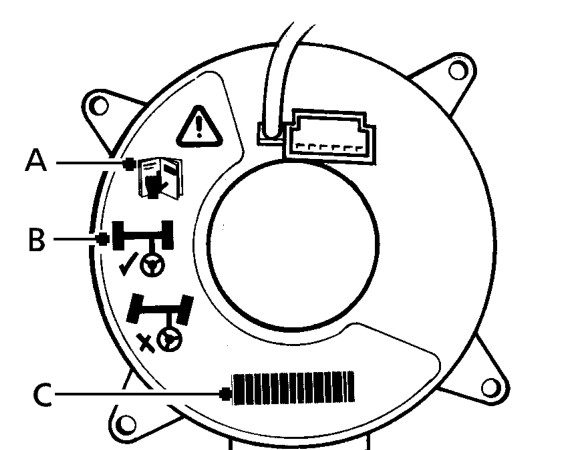

3. Rotary coupler

A- Refer to the Workshop Manual for detailed instructions.

B- Ensure wheels are in the straight ahead position before removing refitting.

C- ROVER Part Number - The code number must be recorded and quoted when ordering a replacement unit.
