ROTARY COUPLER ’D’ SERIES - UP TO 97.5MY

Service repair no - 86.65.85

CAUTION:

• Do not disassemble the rotary coupler. It has no serviceable parts and must be replaced as a complete assembly. • Replace the rotary coupler every 10 years. • The rotary coupler is a special part for use with SRS and cruise and radio switches. When replacing, be sure to use only a genuine Rover part. • Make sure the wheels are aligned straight ahead.

Remove

  1. Remove drivers airbag module. See this section.
  2. Remove steering wheel. See STEERING, Repairs.

CAUTION: Ensure tape is securely attached across edge of rotary coupler to retain in central setting.

Rotary coupler ’d’ series - up to 97.5my – Remove steering wheel. See STEERING, Repairs.

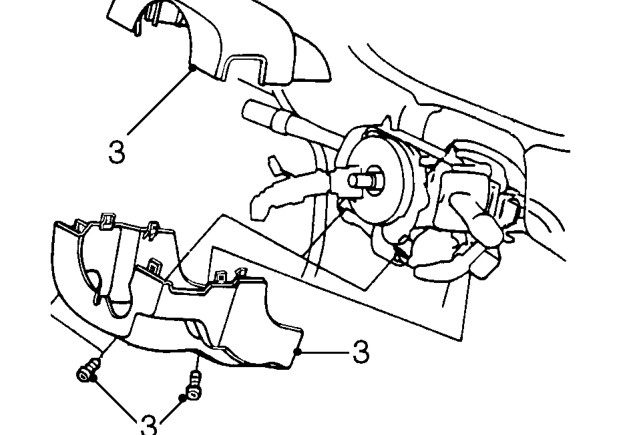

  1. Remove 3 screws, carefully separate and remove column lower and upper covers.
Rotary coupler ’d’ series - up to 97.5my – Remove 3 screws, carefully separate and remove column lower and upper covers.

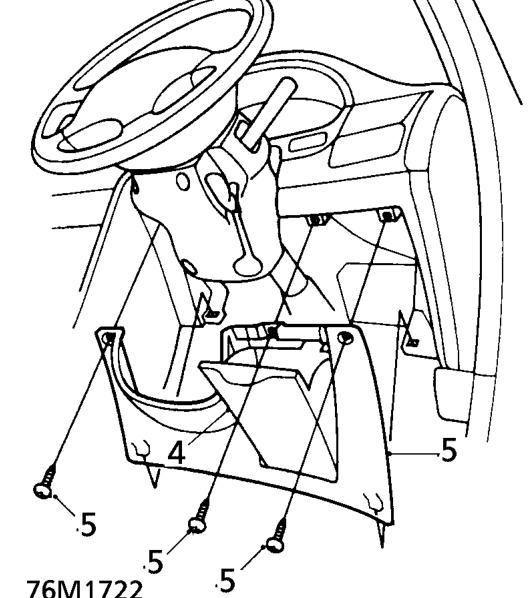

  1. Remove pocket from driver’s side closing panel.
  2. Remove 3 screws and remove closing panel.
Rotary coupler ’d’ series - up to 97.5my – Remove 3 screws and remove closing panel.

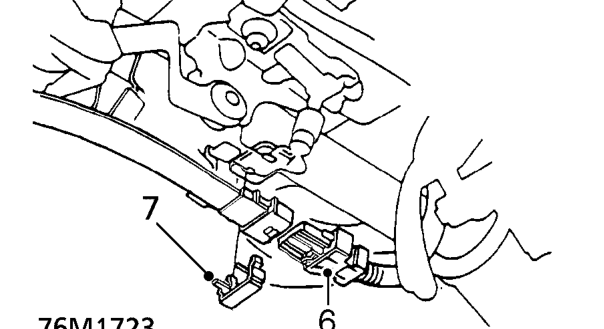

  1. Disconnect SRS harness multiplug from rotary coupler flat harness.
  2. Release retaining strap from column bracket and flat harness.
