Restraint systemsAirbag harness ’d’ series · page 1 of 3

AIRBAG HARNESS ’D’ SERIES

Service repair no - 76.73.73

CAUTION: See safety precautions before commencement of repair.

Remove

  1. Remove key from starter switch, disconnect both battery leads, earth lead first, and wait 10 minutes for the SRS back-up power circuit to discharge before commencing work.
Airbag harness ’d’ series – Remove key from starter switch, disconnect both battery leads, earth lead first, and wait

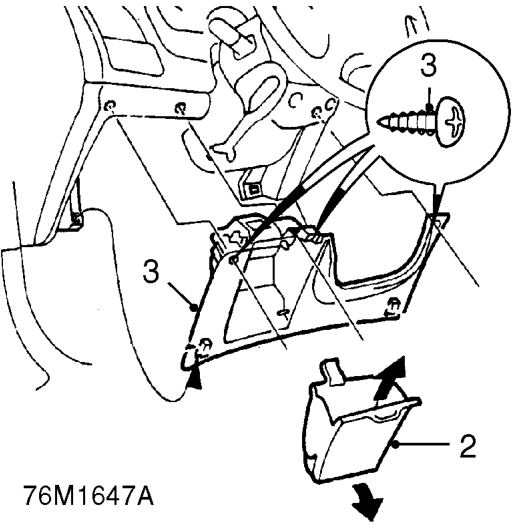

  1. Remove pocket from drivers side closing panel.
  2. Remove 3 screws and remove closing panel.
  3. Remove glove box. See BODY, Interior trim components.
  4. Remove front console. See BODY, Interior trim components.
Airbag harness ’d’ series – Remove front console. See BODY, Interior trim components.

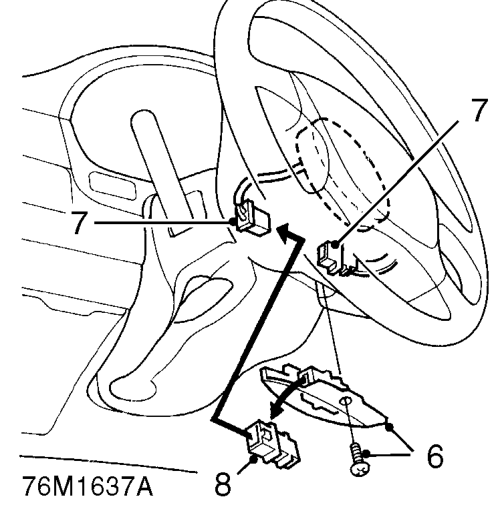

  1. Remove screw and remove access panel from steering wheel hub.
  2. Disconnect airbag module multiplug.
  3. Remove RED safety connector from access panel and fit to drivers airbag module multiplug.
Airbag harness ’d’ series – Remove RED safety connector from access panel and fit to drivers airbag module multiplug.

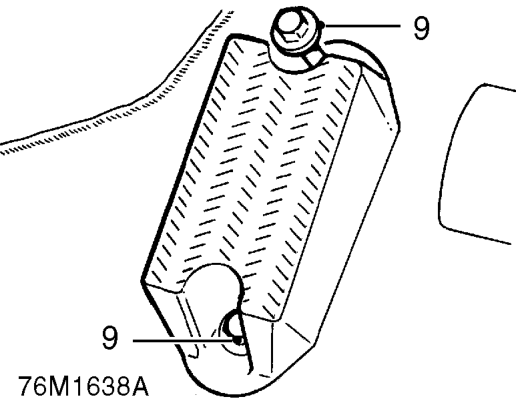

  1. Remove 2 bolts and remove drivers foot rest.
