Airbag harness ’d’ series (page 3 of 3)

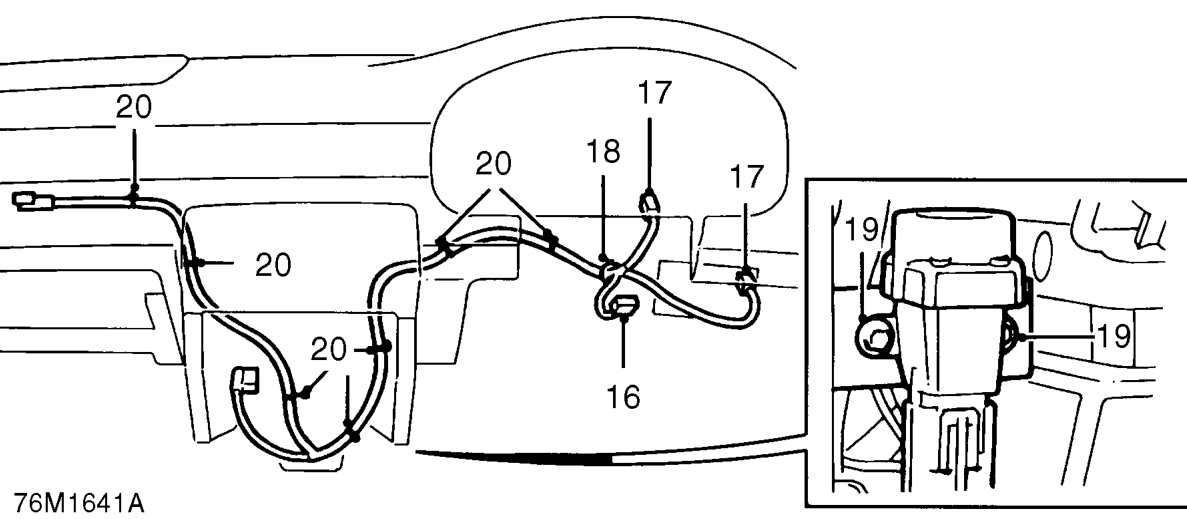

16. Disconnect multiplug from rotary coupler harness.
17. Disconnect airbag harness from main harness and fuse box.
18. Remove cable strap airbag harness to column switch harness.
19. Remove 2 bolts and move inertia switch and relay bracket clear of airbag harness clip.
20. Release 7 clips and remove airbag harness.

Refit

1. Fit new airbag harness and secure with clips.
2. Fit cable strap to secure airbag harness to column switch harness.
3. Position inertia switch and relay brackets and fit bolts.
4. Connect airbag harness to main harness and fuse box.
5. Connect multiplug to rotary coupler harness.
6. Remove RED protective cover and connect harness to passenger airbag.
7. Connect multiplug to control and diagnostic unit.
8. Align earth wire to control and diagnostic unit bracket and tighten Torx screw to 10 Nm.
9. Fit protective covers over control and diagnostic unit and fit retaining studs.
10. Reposition carpet over control and diagnostic unit protective covers.
11. Fit foot rest and fit and tighten bolts.
12. Remove RED safety connector from drivers airbag module multiplug and secure in storage clip.
13. Fit front console. See BODY, Interior trim components.
14. Fit glove box. See BODY, Interior trim components.
15. Fit closing panel and secure with screws.
16. Fit pocket to closing panel.
17. Connect both battery leads, earth lead last.
18. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
