Restraint systemsPre-tensioner - front seat belt · page 1 of 2

PRE-TENSIONER - FRONT SEAT BELT

Service repair no - 76.73.75

Remove

WARNING: SRS procedures must be followed and aLL precautions observed.

  1. Disconnect battery earth lead.
  2. Remove ’B’ post lower trim. See BODY, Interior trim components.
Pre-tensioner - front seat belt – Remove ’B’ post lower trim. See BODY, Interior trim components.

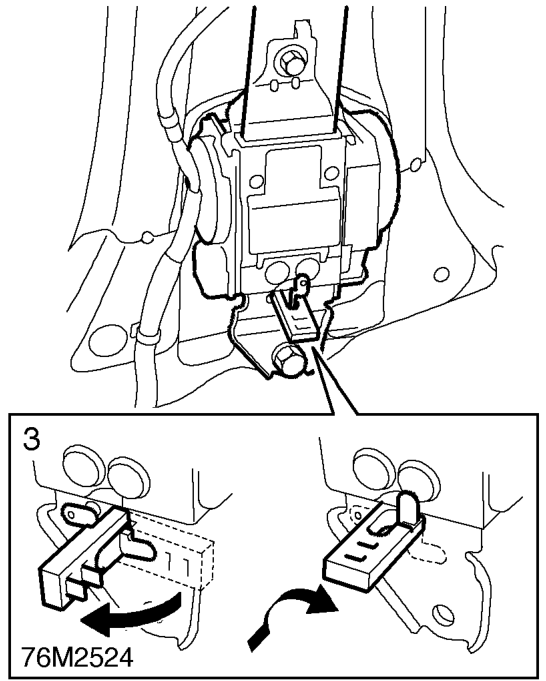

  1. Set sensor lock pin to the LOCK position.
Pre-tensioner - front seat belt – Set sensor lock pin to the LOCK position.

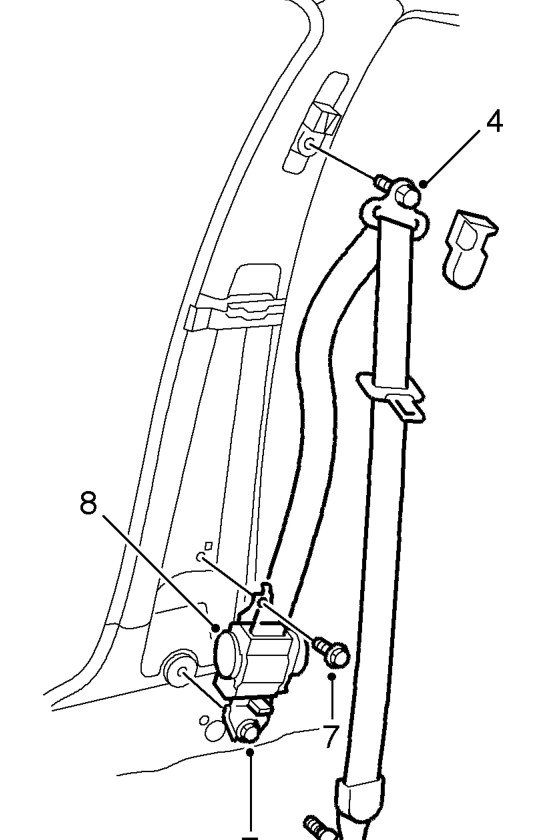

  1. Remove seat belt upper bolt cover and remove cover.
  2. Release clip securing front edge of ’B’ post upper finisher and release belt from finisher.
  3. Release cover from seat belt lower bolt and remove bolt.
  4. Remove 2 bolts securing seat belt pre-tensioner to ’B’ post.
  5. Remove pre-tensioner.
