Passenger’s airbag module

PASSENGER’S AIRBAG MODULE

Service repair no - 76.73.69

CAUTION: See safety precautions before commencement of repair.

Remove

1. Remove key from starter switch, disconnect both battery leads, earth lead first, and wait 10 minutes for the SRS back-up power circuit to discharge before commencing work.
2. Remove glove box. See BODY, Interior trim components.

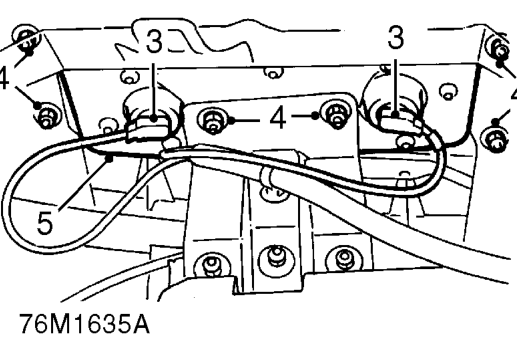

’K’ ’L’ and ’T’ Series and ’D’ Series - 97.5MY on

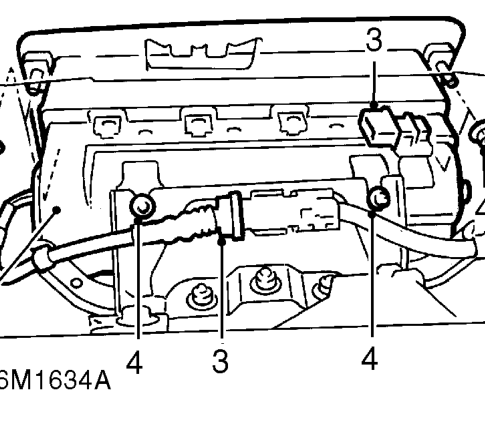

’D’ Series - Up to 97.5MY

3. Disconnect 2 multiplugs from airbag.

NOTE: Up to 97.5MY - ’D’ series airbag has only one multiplug which must be isolated with the RED connector provided.

4. Remove 6 nuts securing airbag to fascia.
5. Remove passenger’s airbag module.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the precautions part of this section.

NOTE: If the airbag module is to be replaced, the bar code must be recorded.

Refit

1. Position airbag module to fascia, fit and tighten upper nuts to 4 Nm.
2. Fit NEW nuts to lower mounting and tighten to 9 Nm.
3. Connect airbag multiplugs. Up to 97.5MY - ’D’ series, remove RED connector and fit to retaining clip.
4. Secure harness clip.
5. Fit glove box. See BODY, Interior trim components.
6. Connect both battery leads, earth lead last.
7. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
