Airbag harness ’d’ series (page 2 of 3)
- Make
- Rover
- Model
- 400 Workshop Manual
- Year
- 1995–2000
- Section
- Repairs
Restraint systemsAirbag harness ’d’ series · page 2 of 3

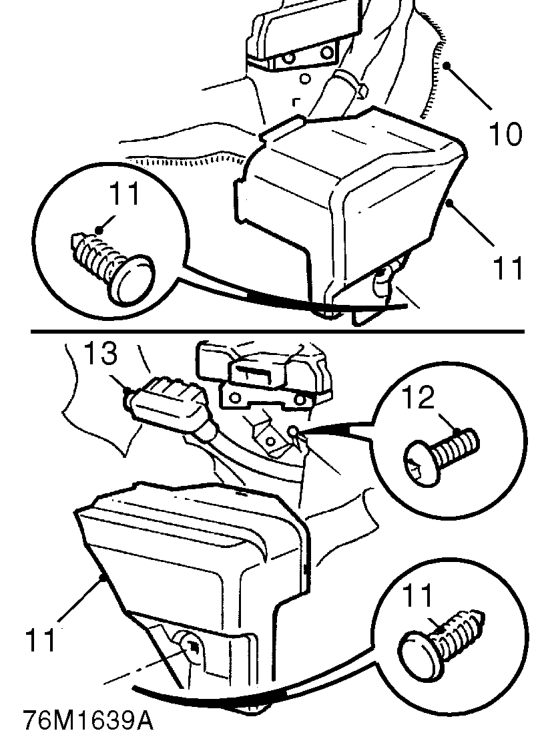

- Pull back carpet for access to control and diagnostic unit protective cover.
- Remove 2 retaining studs and remove protective covers from control and diagnostic unit.
- Remove Torx screw, airbag harness earth wire to control and diagnostic unit bracket.

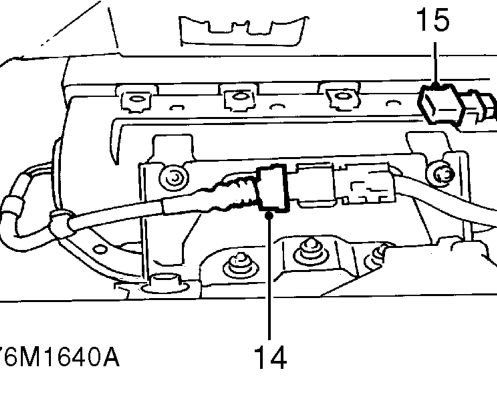

- Disconnect multiplug from control and diagnostic unit.
- Disconnect multiplug from passenger airbag.
- Fit RED protective cover to terminal.
