Relay and control unit locations › Dashboard
ElectricalDashboard

Dashboard

Note: LHD type is shown, RHD type is symmetrical.

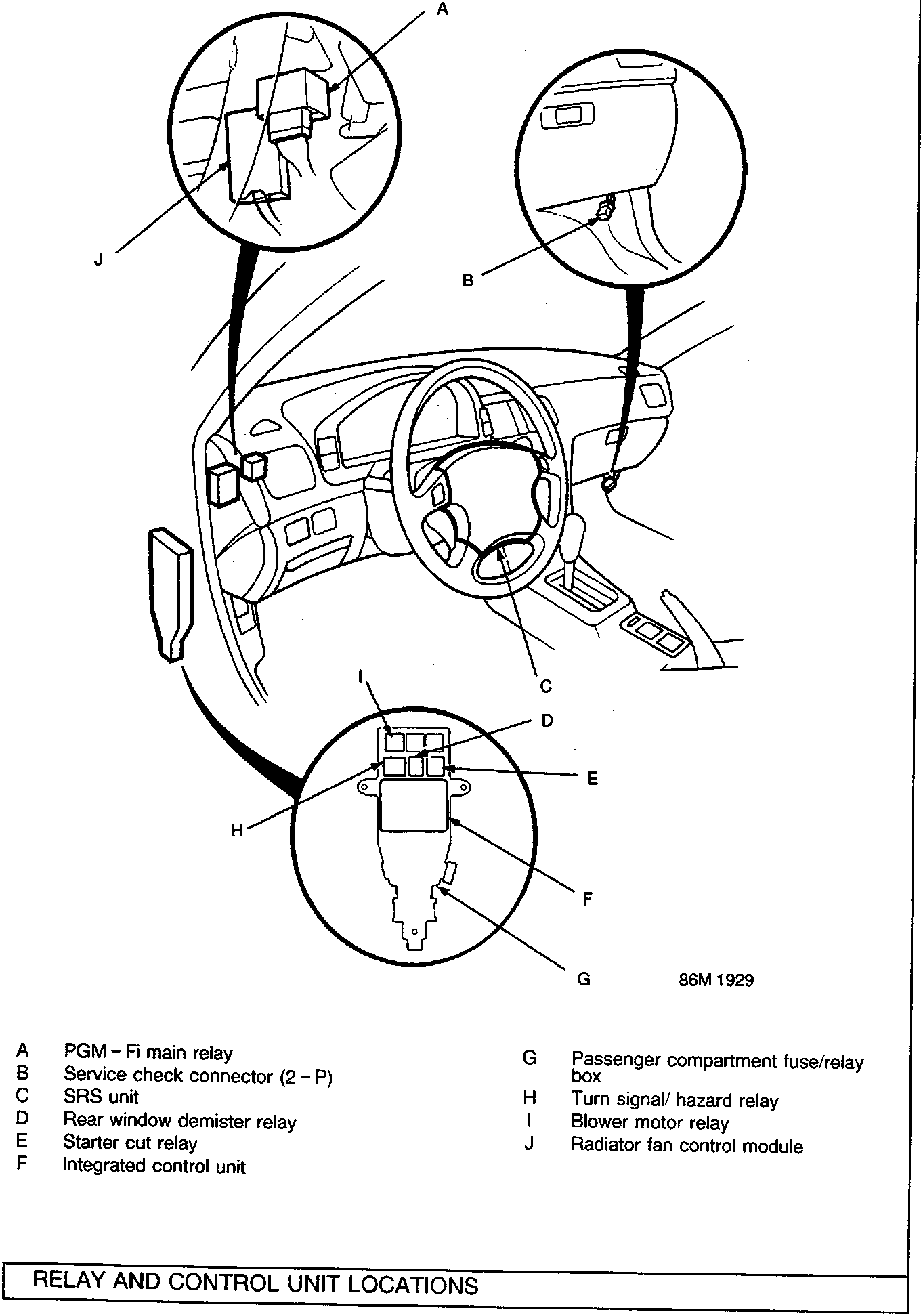

Diagram of the dashboard interior showing locations of various electrical components and relays, with callout labels A through J pointing to specific units including the PGM-Fi main relay, SRS unit, integrated control unit, and passenger compartment fuse/relay box. Two circular insets provide magnified views of specific areas. Figure number 86M 1929.
A PGM-Fi main relay
B Service check connector (2-P)
C SRS unit
D Rear window demister relay
E Starter cut relay
F Integrated control unit
G Passenger compartment fuse/relay box
H Turn signal/ hazard relay
I Blower motor relay
J Radiator fan control module
