Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Dashboard LHD

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Relay and control unit locations › Dashboard LHD
ElectricalDashboard LHD · page 1 of 2

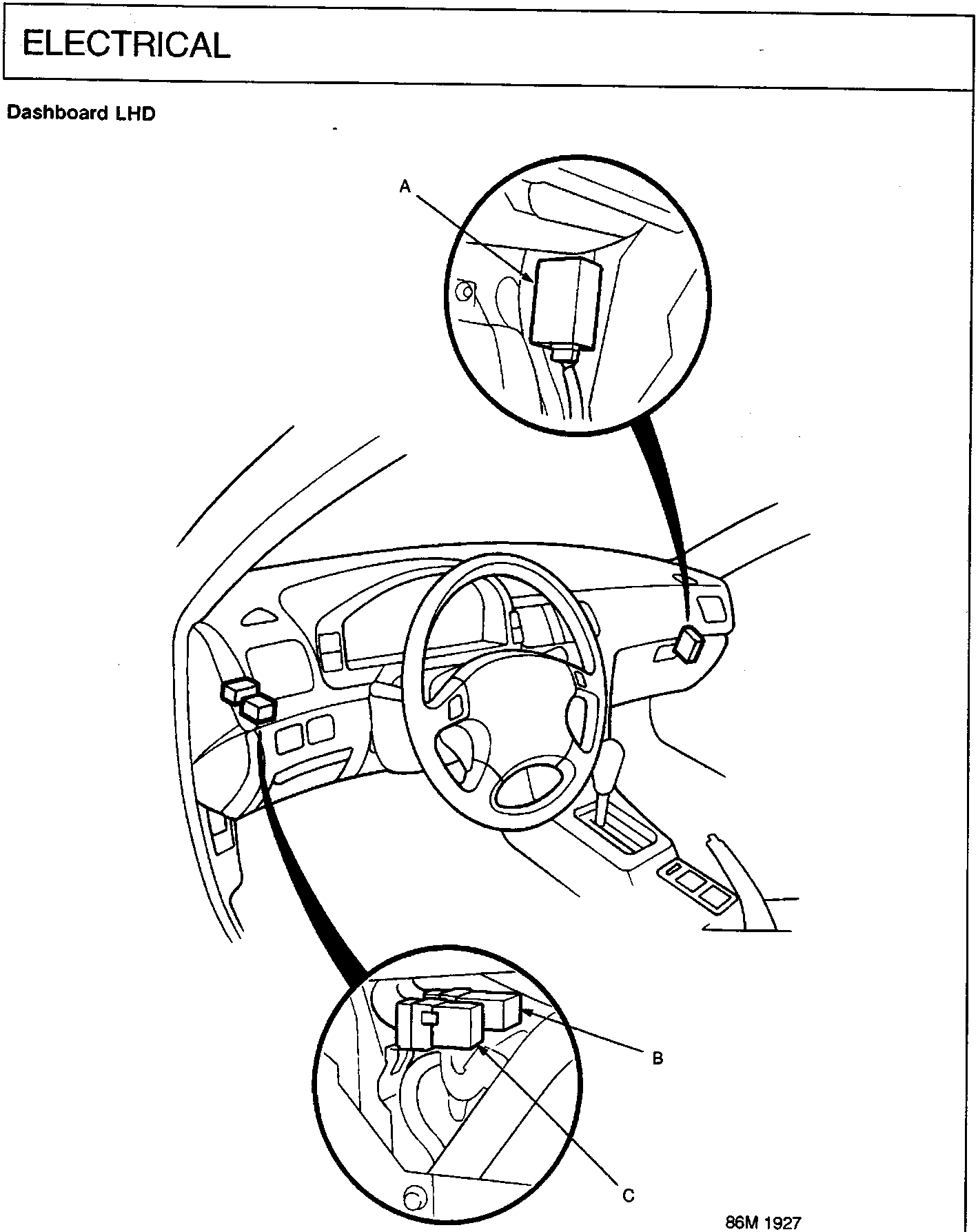

Dashboard LHD – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Dashboard LHD

Diagram of the left-hand drive dashboard showing the locations of the engine mount control unit, headlight washer control unit, and seat heater main relay with callout labels A, B, and C.
  • A Engine mount control unit (A/T)
  • B Headlight washer control unit
  • C Seat heater main relay (KS)
