Relay and control unit locations › Floor
ElectricalFloor

Floor

Note: LHD type is shown, RHD type is symmetrical.

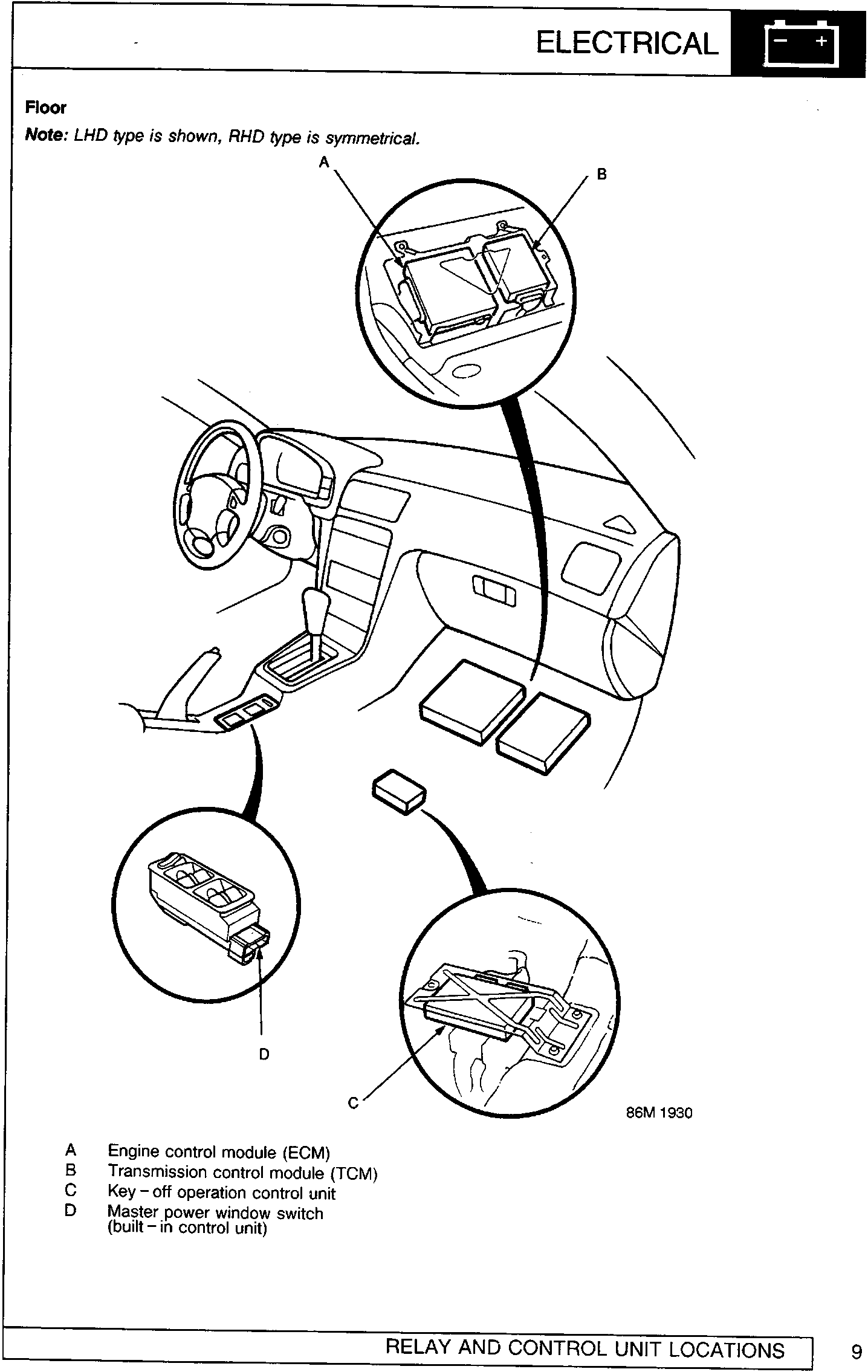

Diagram of the vehicle floor area showing locations of control modules and switches, with callouts A, B, C, and D pointing to specific components. Figure number 86M 1930.
  • A Engine control module (ECM)
  • B Transmission control module (TCM)
  • C Key – off operation control unit
  • D Master power window switch (built – in control unit)
