Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Fault finding: Adjustments (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Fault finding
SteeringAdjustments · page 2 of 2

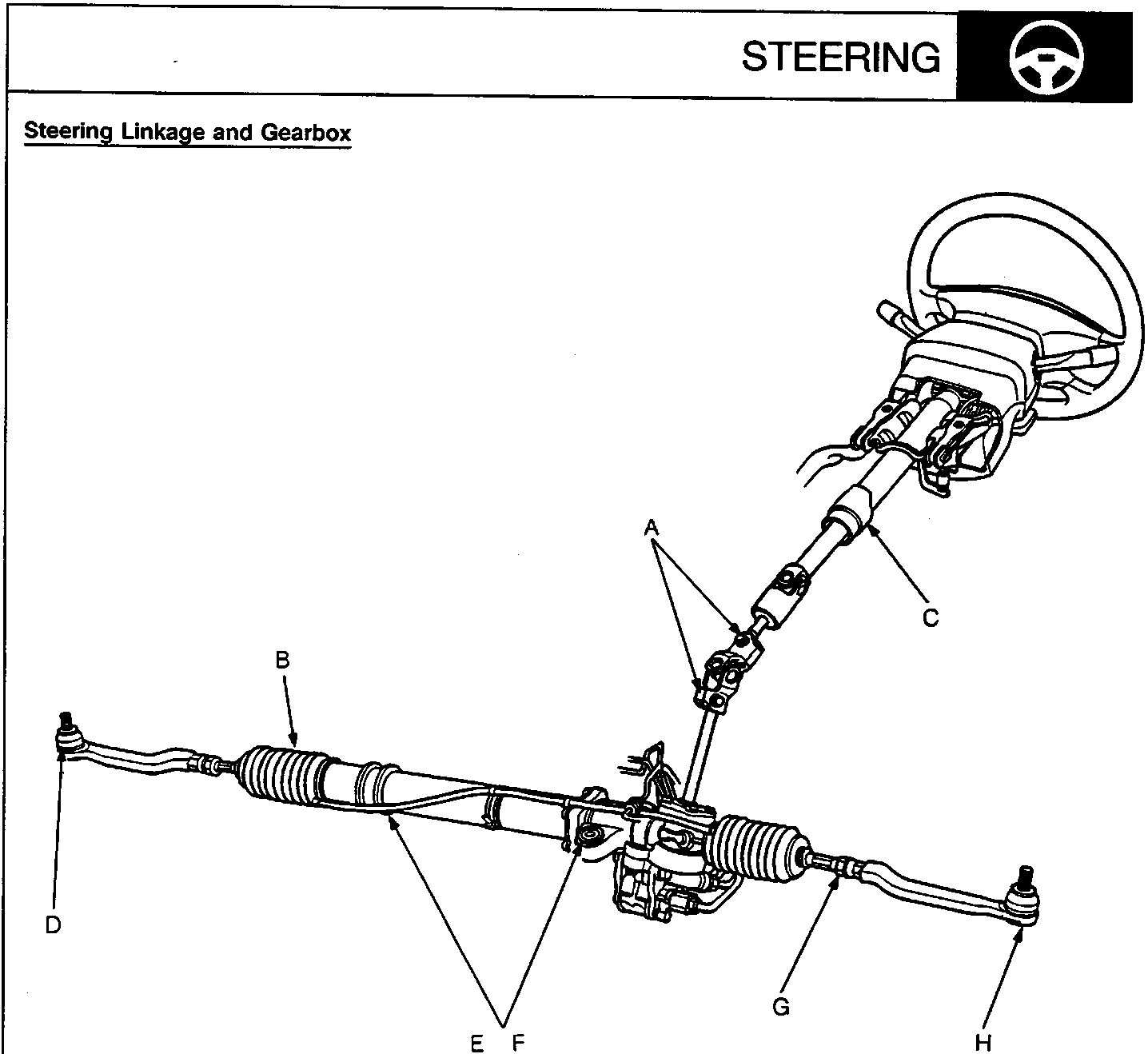

Diagram of the steering linkage and gearbox assembly showing components labeled A through H, including joints, boots, column, ball joints, gearbox, mounting cushions, tie-rods, and locknuts.

57M0072

ASteering Joints
Check for loose joint bolts.
ESteering Gearbox
Inspect for loose mounting bolts.
BBoot
Inspect for damage or deterioration.
FGearbox Mounting Cushions
Inspect for deterioration.
CSteering Column
Inspect for loose column mounting bolts and nuts.
GTie-rod Locknut
Check for loose locknut.
DBall Joint Boot
Inspect for damage or deterioration.
HTie-rod Ball Joint
Inspect for faulty movement and damage.
