Pump Pressure Check

manufacturer's power steering fluid, will damage the system.

System capacity = 1.8 litre
Reservoir capacity = 0.5 litre

5. Start the engine and run it at idle, then turn the steering from lock-to-lock several times to bleed air from the system.
6. Recheck the fluid level and add some if necessary.

CAUTION: Do not fill the reservoir beyond the upper level line.

Pump Pressure Check

Check the fluid pressure as follows to determine whether the trouble is in the pump or gearbox.

Note: First check the power steering fluid level and pump belt tension.

CAUTION: Disconnect the outlet hose with care so as not to spill the power steering fluid on the frame and other parts.

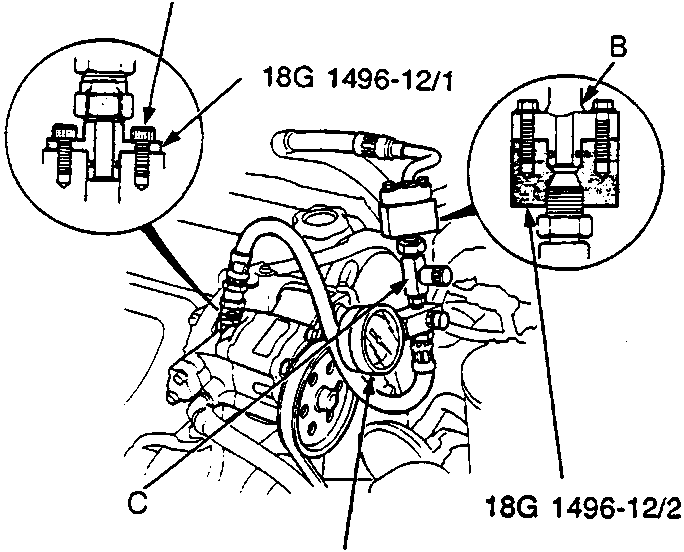

• A Bolt
• B Outlet Hose
• C Shut-off Valve

1. Disconnect the outlet hose from the pump outlet fitting, and install the pump joint adaptor on the pump outlet.
2. Connect the hose joint adaptor to the power steering pressure gauge, then connect the outlet hose to the adaptor.
3. Install the power steering pressure gauge to the pump joint adaptor as shown.
