Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition12 · Steering
12 · Steering & suspension

Steering Wheel Rotation Play (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Fault finding
SteeringSteering Wheel Rotation Play · page 2 of 2

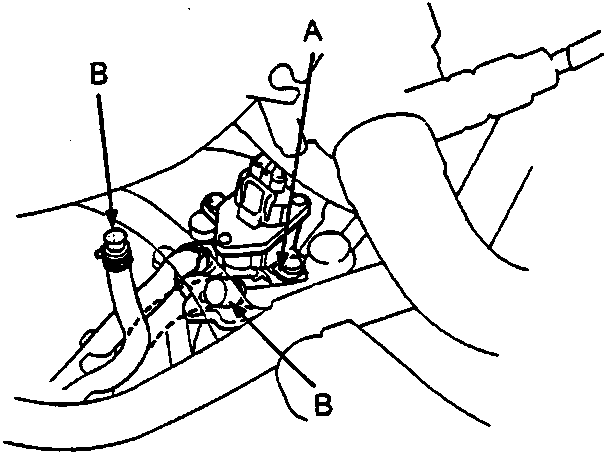

Diagram showing the power steering speed sensor (A) and plug (B) located near the steering column.

57M0068

  1. Power Steering Speed Sensor
  2. Plug
  1. Stop the engine. Disconnect the hose from the power steering speed sensor and plug the hose and the sensor fitting as shown.
  2. Start the engine and let it idle.
  • If the reading is now 32 N or less, replace the power steering speed sensor.
  • If the reading is still more than 32 N, check the gearbox and pump.
