Supplementary restraint system (SRS)Component location

COMPONENT LOCATION

Up to VIN 144844

Note: RHD type is symmetrical to LHD type.

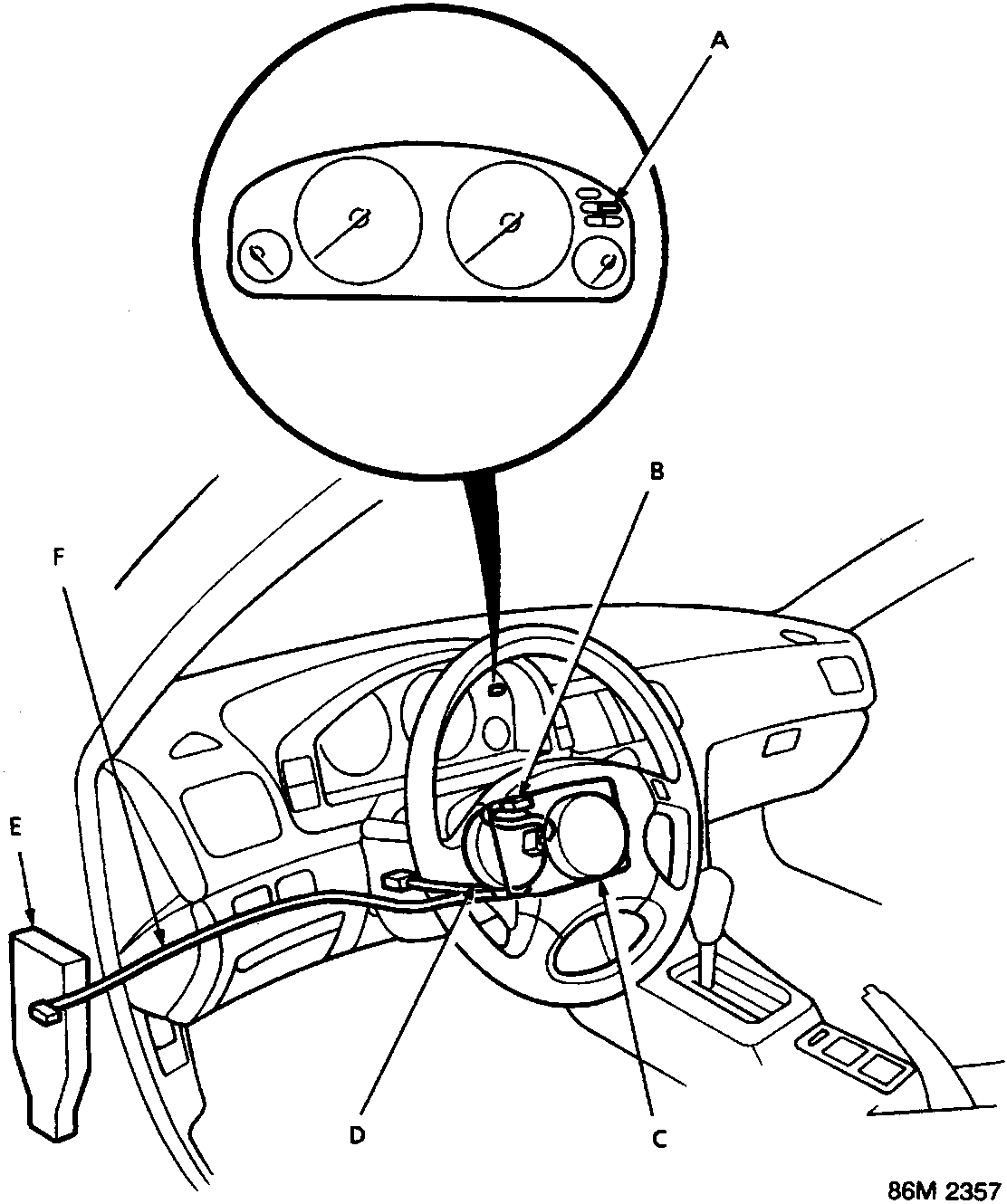

Diagram of the instrument panel and steering column area showing component locations A through F, with a magnified view of the instrument cluster. Figure number 86M 2357.
  1. A SRS indicator light
  2. B SRS unit sub harness
  3. C Airbag assembly
  4. D Slip ring
  5. E Passenger compartment fuse/relay box
  6. F SRS main harness
