Supplementary restraint system (SRS)Circuit diagram · page 1 of 6

Circuit diagram – diagram from the Supplementary restraint system (SRS) chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

CIRCUIT DIAGRAM

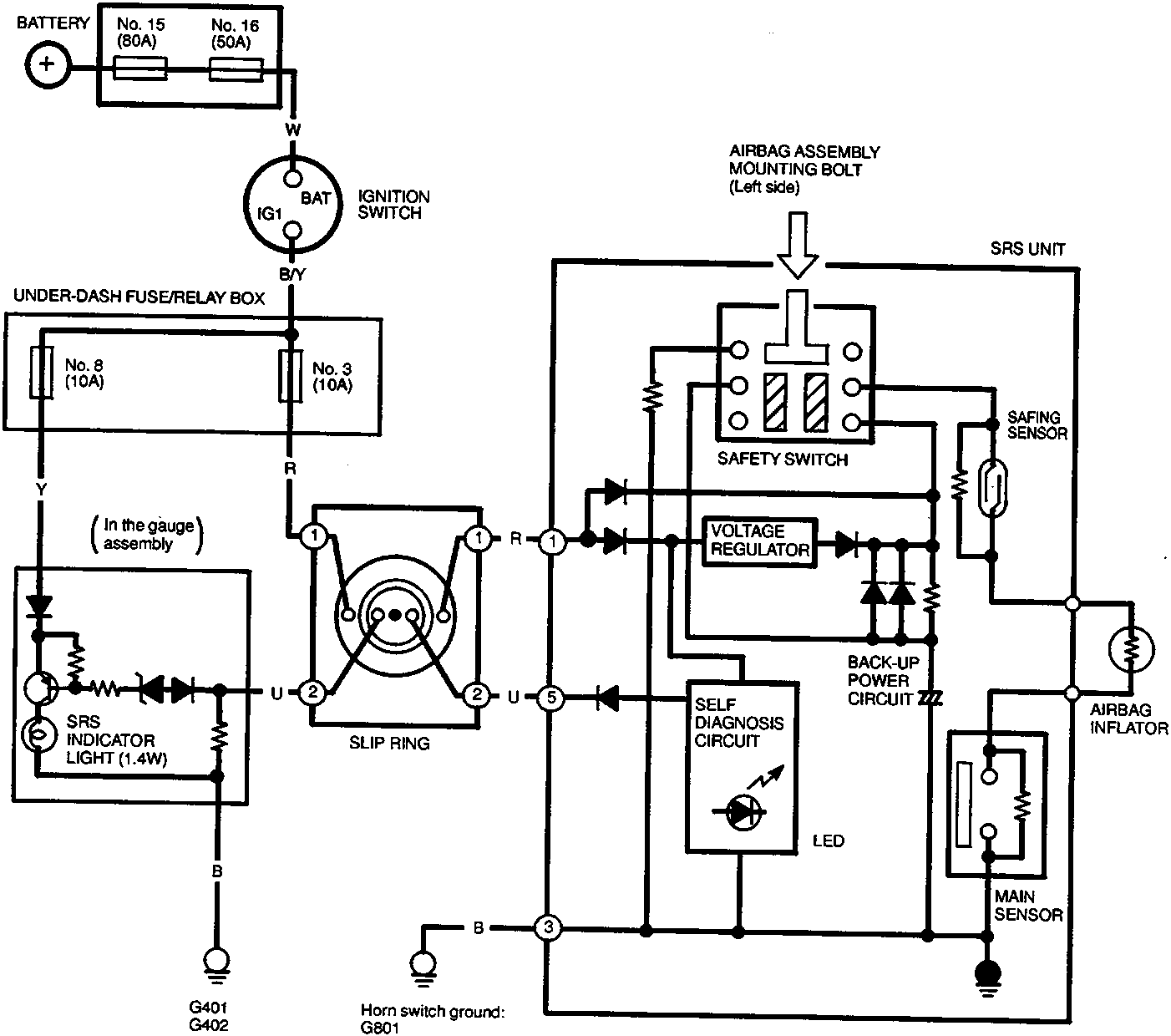

SRS circuit diagram showing connections between battery, fuse/relay boxes, ignition switch, slip ring, SRS indicator light, SRS unit with safety switch, voltage regulator, self diagnosis circuit, safing sensor, main sensor, and airbag inflator.

SLIP RING 5 – P CONNECTOR

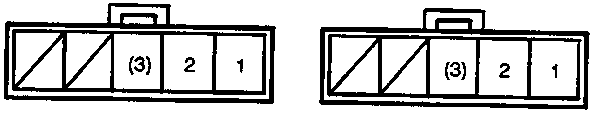

Connector pinout diagrams for Slip Ring 5-P Connector (to SRS Main Harness and to SRS Unit) and SRS Unit 5-P Connector showing pin numbers and horn circuit designation.

(3): Horn circuit

86M 2360E

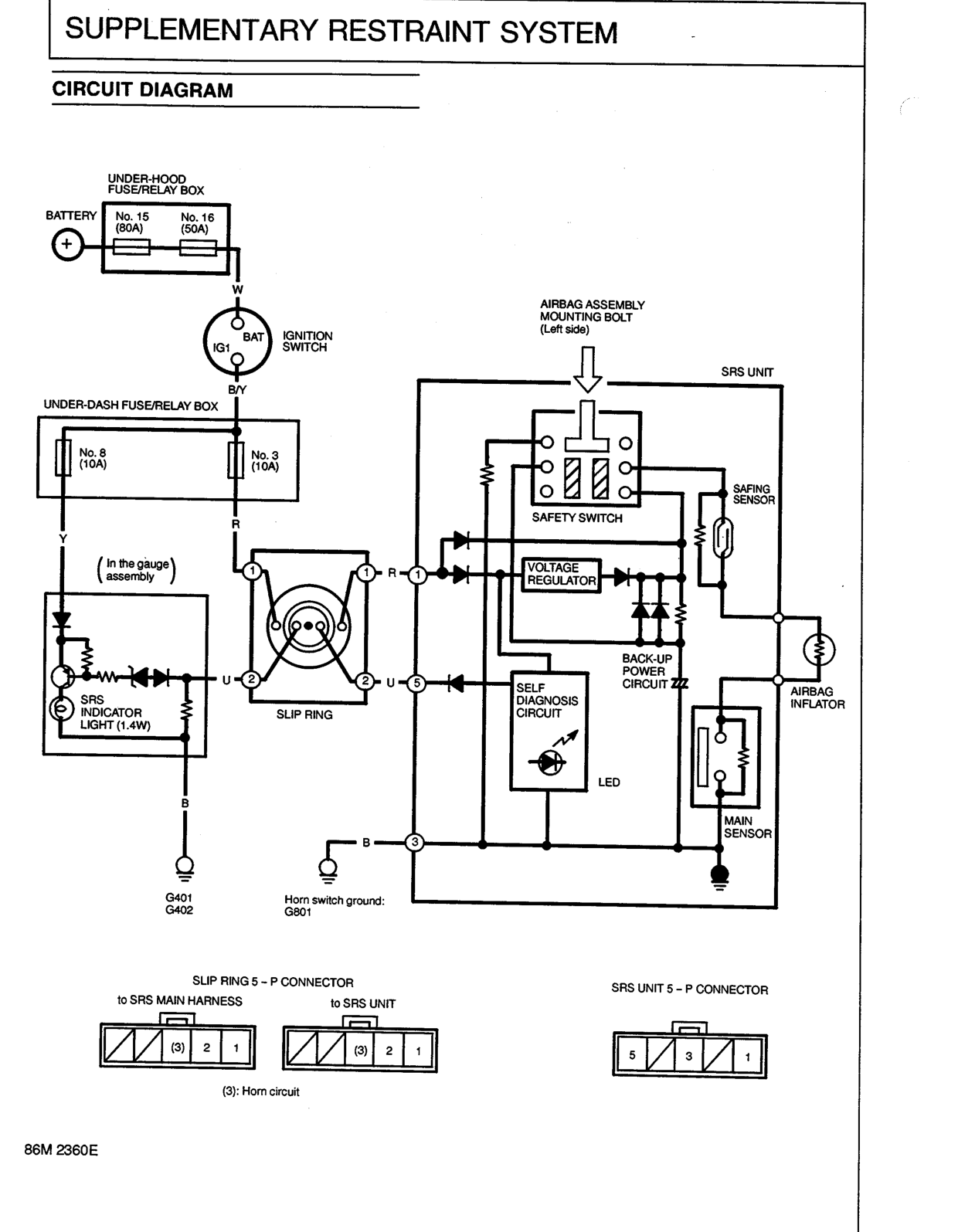

Original page
