Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Circuit diagram (page 5 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Supplementary restraint system (SRS)Circuit diagram · page 5 of 6

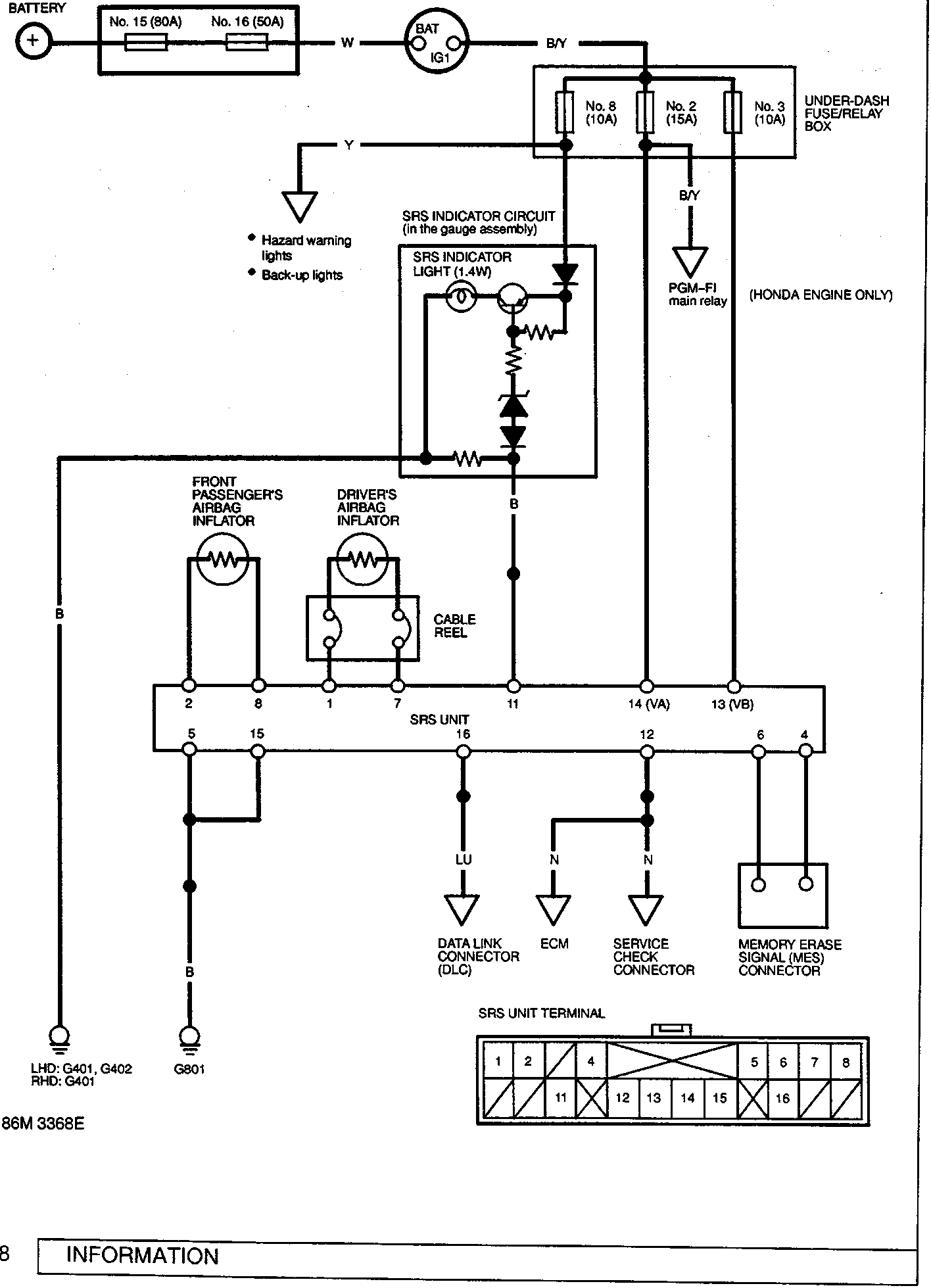

Circuit diagram (page 5 of 6) – diagram from the Supplementary restraint system (SRS) chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Circuit diagram for the SRS type III system showing connections between the battery, under-hood fuse/relay box, ignition switch, under-dash fuse/relay box, SRS indicator circuit, front passenger's and driver's airbag inflators, cable reel, SRS unit, data link connector (DLC), ECM, service check connector, and memory erase signal (MES) connector. Includes ground points G401, G402, and G801, and an SRS unit terminal layout diagram.
