Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition19 · Supplementary restraint system (SRS)
19 · Body & interior

Circuit diagram (page 3 of 6)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Supplementary restraint system (SRS)Circuit diagram · page 3 of 6

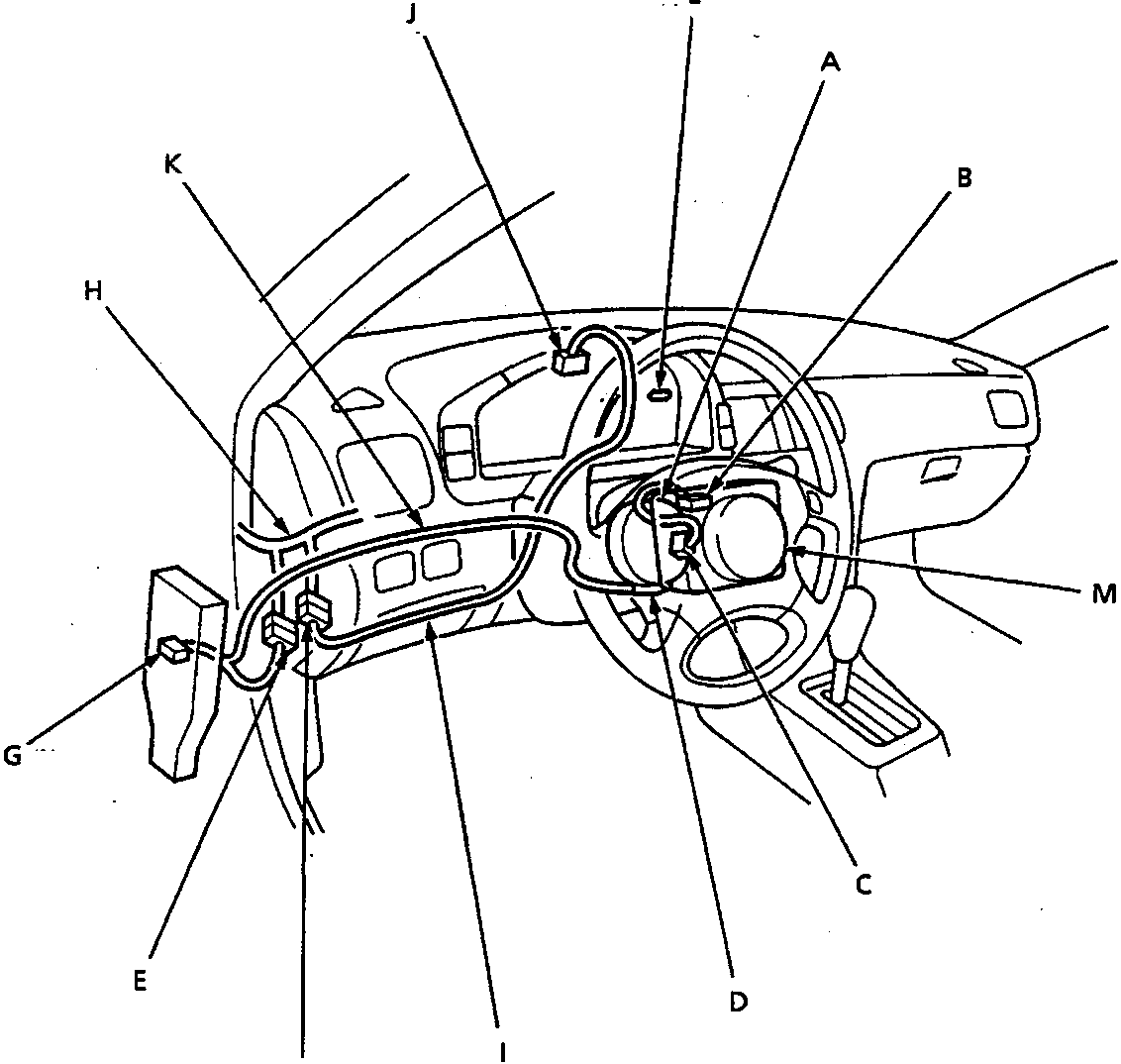

Diagram of the SRS component locations in the dashboard and steering column area, with callout letters A through M pointing to various harnesses, connectors, the slip ring, and the airbag assembly.
  • A Slip ring
  • B SRS unit sub harness to SRS unit (in the airbag assembly) 5-P connector
  • C SRS unit sub harness to slip ring 5-P connector
  • D SRS unit main harness to slip ring 5-P connector
  • E SRS main harness to main wire harness 8-P connector
  • F Dashboard wire harness to main wire harness 14-P connector
  • G SRS main harness to passenger compartment fuse/relay box 2-P connector
  • H Main wire harness
  • I Dashboard wire harness
  • J Dashboard wire harness to indicator light in gauge assembly 14-P connector
  • K SRS main harness
  • L SRS indicator light
  • M Airbag assembly

Note:

  • All SRS electrical wiring harnesses are covered with YELLOW outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • RHD type is symmetrical to LHD type.

CAUTION: Make sure all SRS earth locations are clean and earths are securely attached.
