Supplementary restraint system (SRS)86M3535

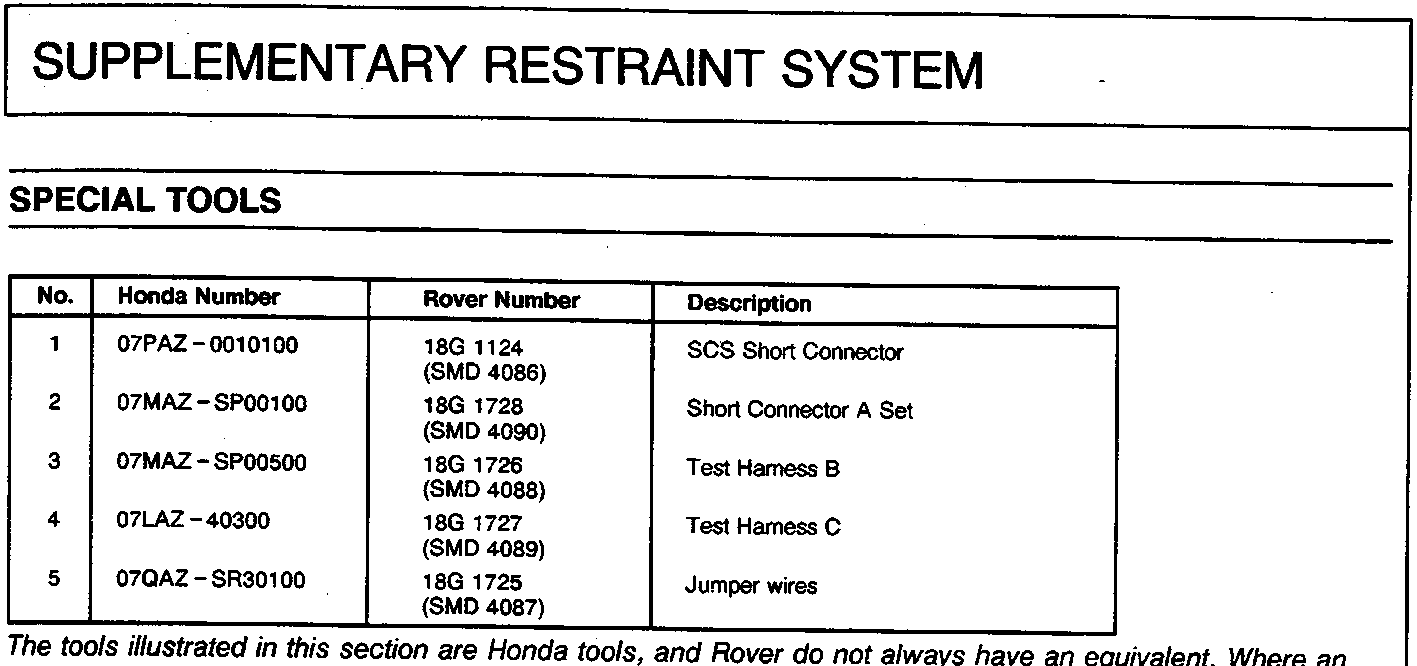

No.Honda NumberRover NumberDescription
107PAZ-001010018G 1124
(SMD 4086)		SCS Short Connector
207MAZ-SP0010018G 1728
(SMD 4090)		Short Connector A Set
307MAZ-SP0050018G 1726
(SMD 4088)		Test Harness B
407LAZ-4030018G 1727
(SMD 4089)		Test Harness C
507QAZ-SR3010018G 1725
(SMD 4087)		Jumper wires

The tools illustrated in this section are Honda tools, and Rover do not always have an equivalent. Where an equivalent Rover tool is available, it may not be visually identical to the Honda tool.

Note: Tool numbers with prefix SMD have been superceded by tools with prefix 18G.

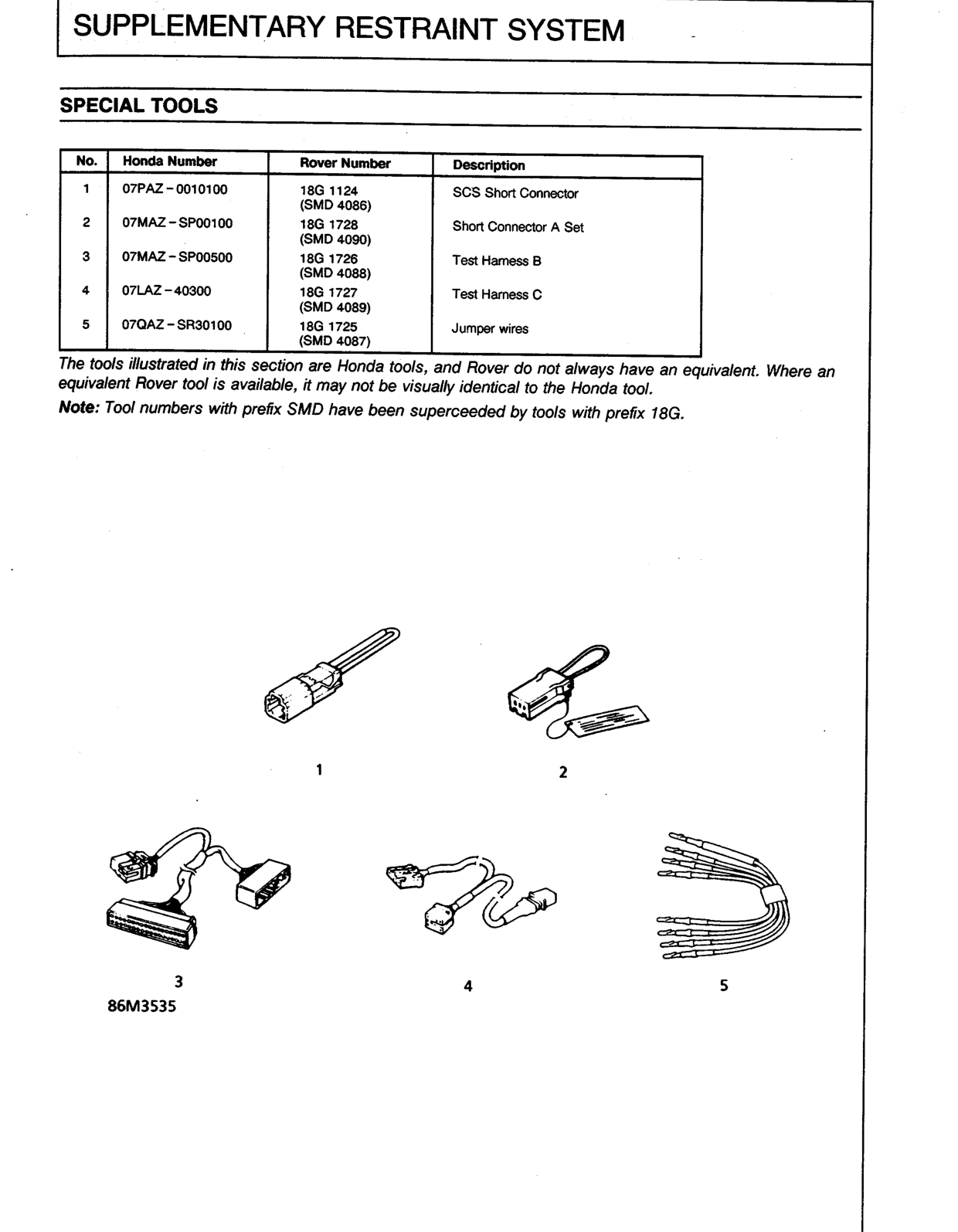

Illustration of special tools for the Supplementary Restraint System, numbered 1 through 5
  1. SCS Short Connector
  2. Short Connector A Set
  3. Test Harness B
  4. Test Harness C
  5. Jumper wires

86M3535
