Supplementary restraint system (SRS)Circuit diagram · page 2 of 6

CAUTION: Make sure all SRS earth locations are clean and earths are securely attached.

86M 2361

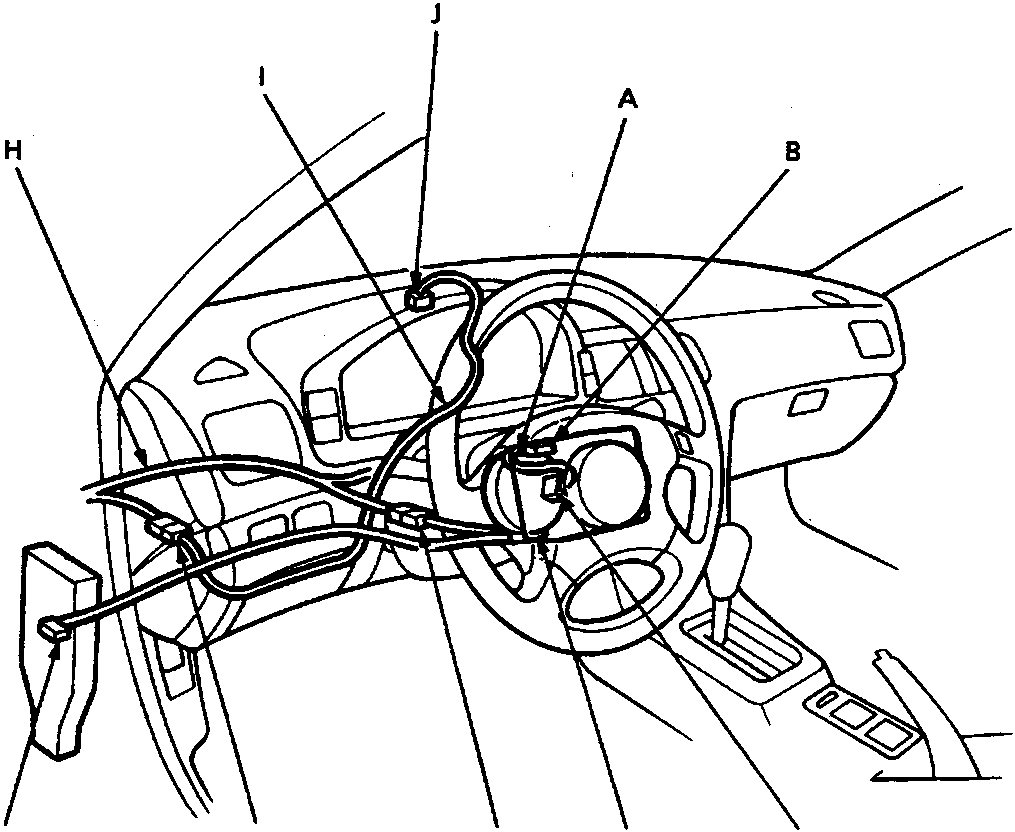

A	Slip ring
B	SRS unit sub harness to SRS unit (in the airbag assembly) 5–P connector
C	SRS unit sub harness to slip ring 5–P connector
D	SRS unit main harness to slip ring 5–P connector
E	SRS main harness to main wire harness 4–P connector
F	Dashboard wire harness to main wire harness 14–P connector
G	SRS main harness to passenger compartment fuse/relay box 2–P connector
H	Main wire harness
I	Dashboard wire harness
J	Dashboard wire harness to indicator light in gauge assembly 14–P connector

Note:

All SRS electrical wiring harnesses are covered with YELLOW outer insulation.

• Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
• RHD type is symmetrical to LHD type.
