Supplementary restraint system (SRS)Circuit diagram · page 4 of 6

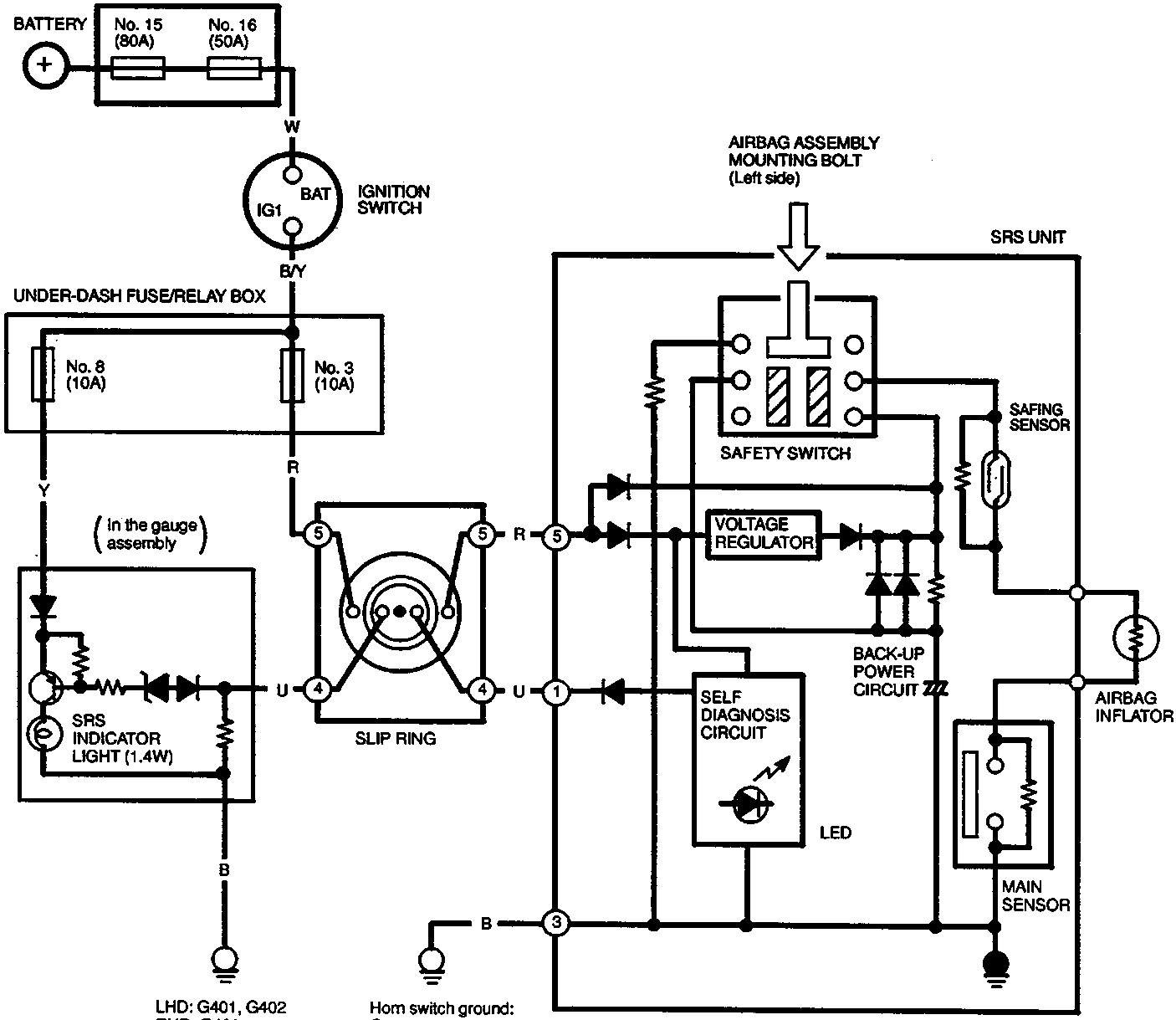

Circuit diagram (page 4 of 6) – diagram from the Supplementary restraint system (SRS) chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.
SLIP RING 5 – P CONNECTOR
| to SRS MAIN HARNESS | to SRS UNIT |
|---|---|
| [symbol] | [symbol] |
(3): Horn circuit
SRS UNIT 5 – P CONNECTOR
| [symbol] |
86M 3367E
