Supplementary restraint system (SRS)Wiring – related

Wiring – related

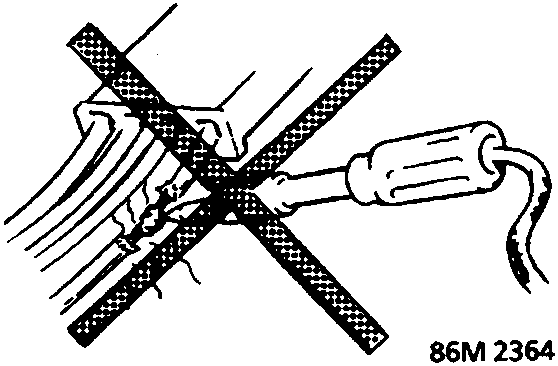

Diagram showing a crossed-out screwdriver probing SRS wiring, indicating this action is prohibited
  • Never attempt to modify, splice or repair SRS wiring.

Note: SRS wiring can be identified by special yellow outer protective covering.

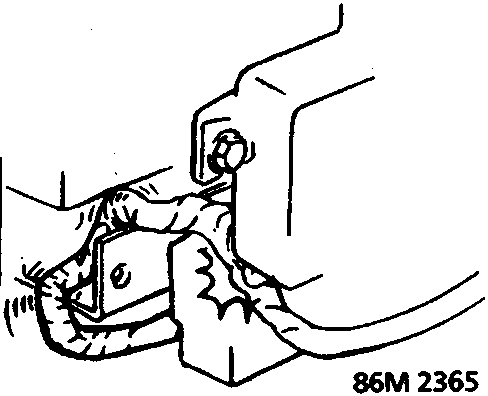

Diagram showing the correct installation of harness wires near a component, avoiding pinching
  • Be sure to install the harness wires so that they are not pinched or interfering with other car parts.
  • Make sure all SRS earth locations are clean and earths are securely fastened for optimum metal – to – metal contact. Poor earthing can cause intermittent problems that are difficult to diagnose.

Disconnecting the SRS Connector at the Passenger compartment fuse/relay box

CAUTION: Avoid breaking the connector; it's double – locked.

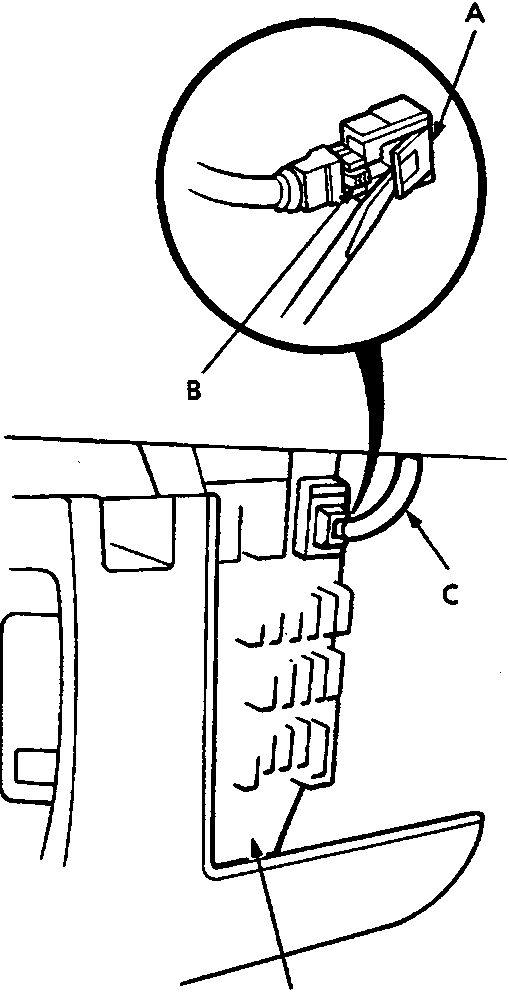

Diagram of the passenger compartment fuse relay box area showing the SRS main harness connector with callouts A (Lid), B (Tab), C (SRS main harness), and D (Passenger compartment fuse relay box)
  • A Lid
  • B Tab
  • C SRS main harness
  • D Passenger compartment fuse relay box
  1. First lift the connector lid with a thin screwdriver, then press the connector tab down and pull the connector out.
  2. To reinstall the connector, push it into position until it clicks, then close its lid.
