FLOW CHARTS

Fault: The SRS Indicator Does Not Light

  • The SRS indicator light will not come on until six seconds after the ignition switch has been turned on.
  • The LED of the SRS unit should blink one time.

CAUTION: Use only a digital circuit tester to check the system.

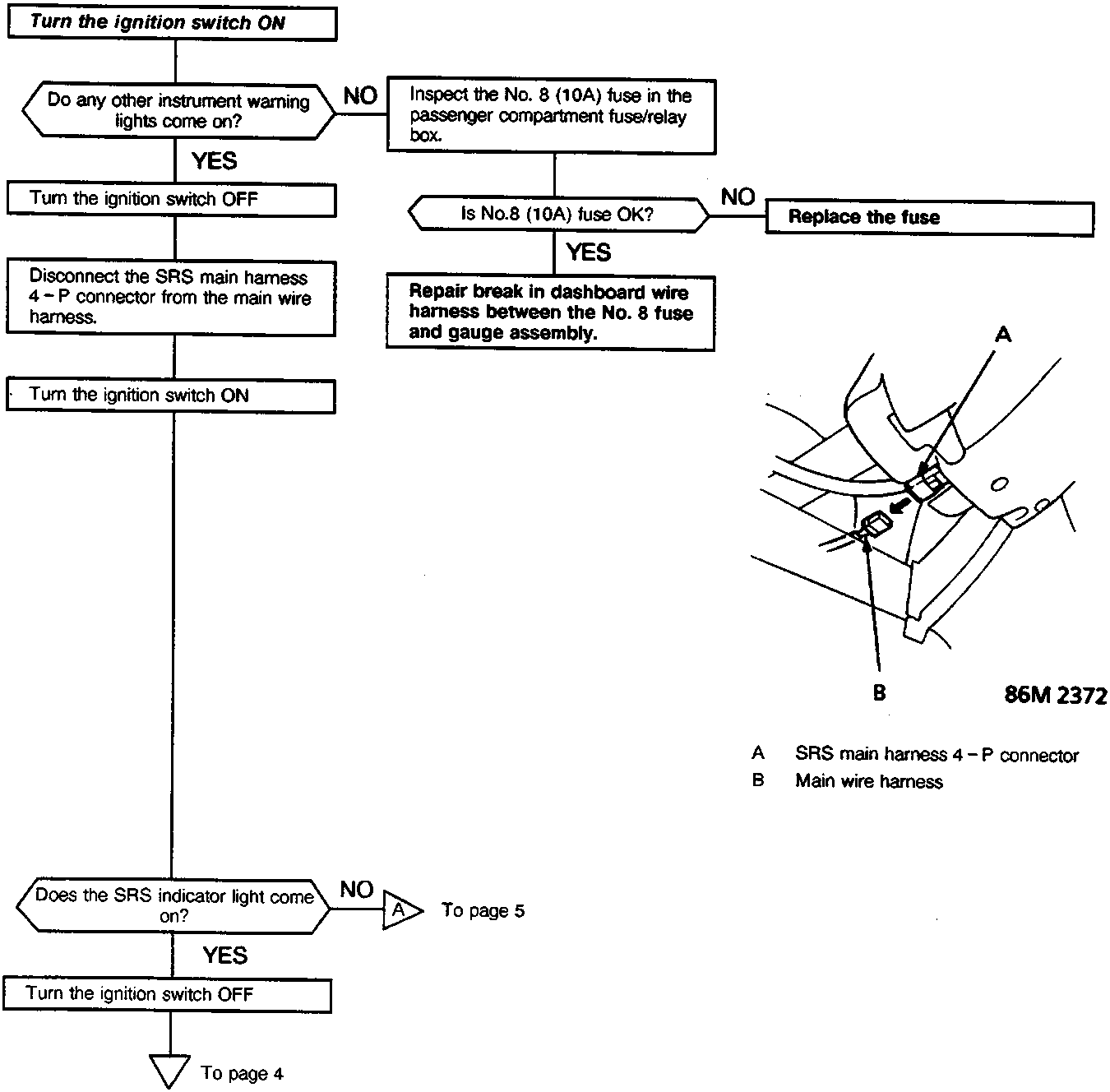

Flowchart for troubleshooting SRS indicator light not lighting.
  1. Turn the ignition switch ON
  2. Do any other instrument warning lights come on? NO — Inspect the No. 8 (10A) fuse in the passenger compartment fuse/relay box.
  3. Is No.8 (10A) fuse OK? NO — Replace the fuse
  4. Is No.8 (10A) fuse OK? YES — Repair break in dashboard wire harness between the No. 8 fuse and gauge assembly.
  5. Turn the ignition switch OFF
  6. Disconnect the SRS main harness 4-P connector from the main wire harness.
  7. Turn the ignition switch ON
  8. Does the SRS indicator light come on? NO — To page 5
  9. Does the SRS indicator light come on? YES — Turn the ignition switch OFF — To page 4
  1. A SRS main harness 4-P connector
  2. B Main wire harness

86M 2372
