Flow charts (page 4 of 8)

From page 5

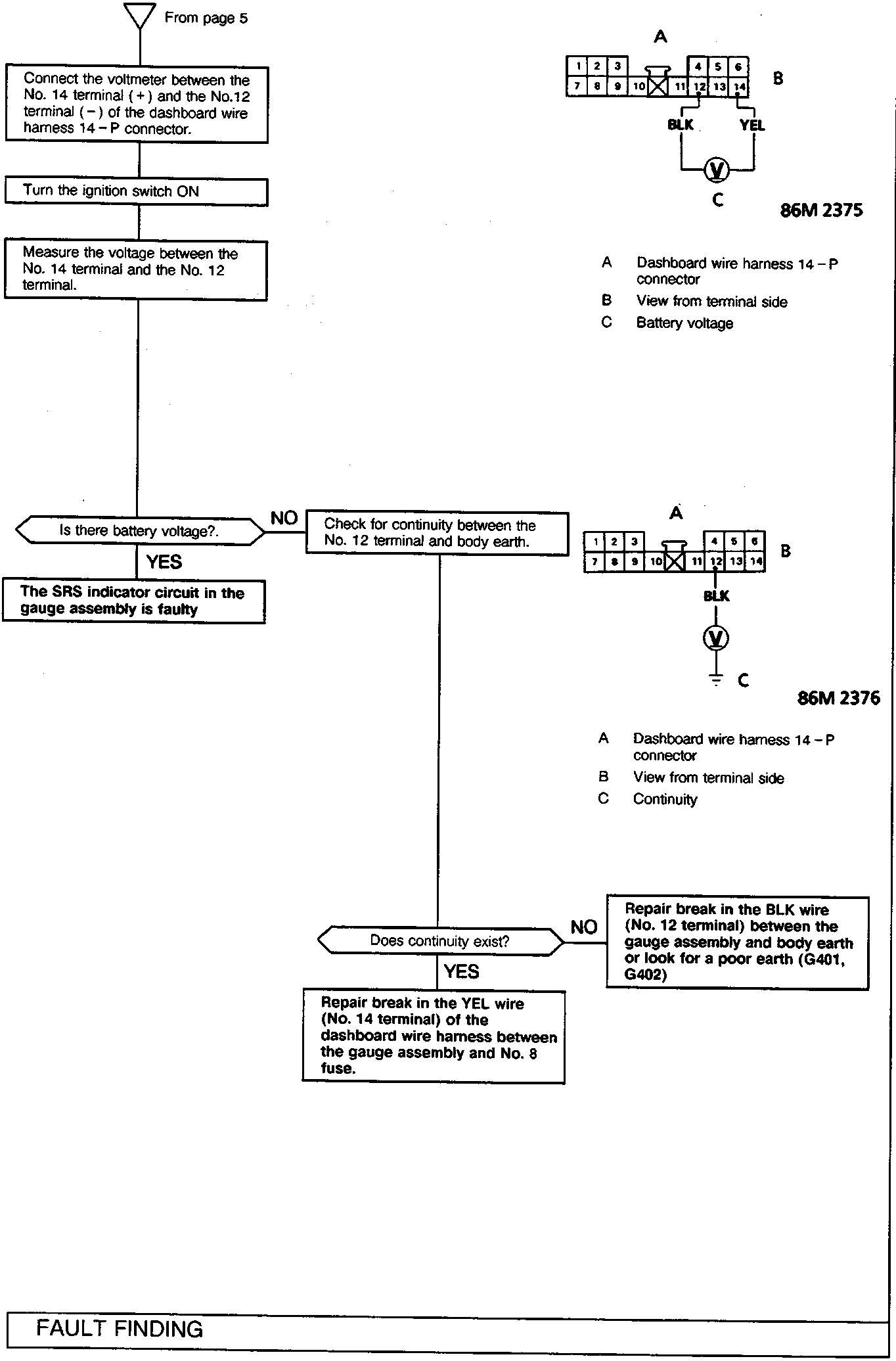

Connect the voltmeter between the No. 14 terminal (+) and the No.12 terminal (-) of the dashboard wire harness 14-P connector.

Turn the ignition switch ON

Measure the voltage between the No. 14 terminal and the No. 12 terminal.

A Dashboard wire harness 14-P connector

B View from terminal side

C Battery voltage

Is there battery voltage? NO Check for continuity between the No. 12 terminal and body earth.

YES The SRS indicator circuit in the gauge assembly is faulty

A Dashboard wire harness 14-P connector

B View from terminal side

C Continuity

Does continuity exist? NO Repair break in the BLK wire (No. 12 terminal) between the gauge assembly and body earth or look for a poor earth (G401, G402)

YES Repair break in the YEL wire (No. 14 terminal) of the dashboard wire harness between the gauge assembly and No. 8 fuse.
