Flow charts (page 7 of 8)

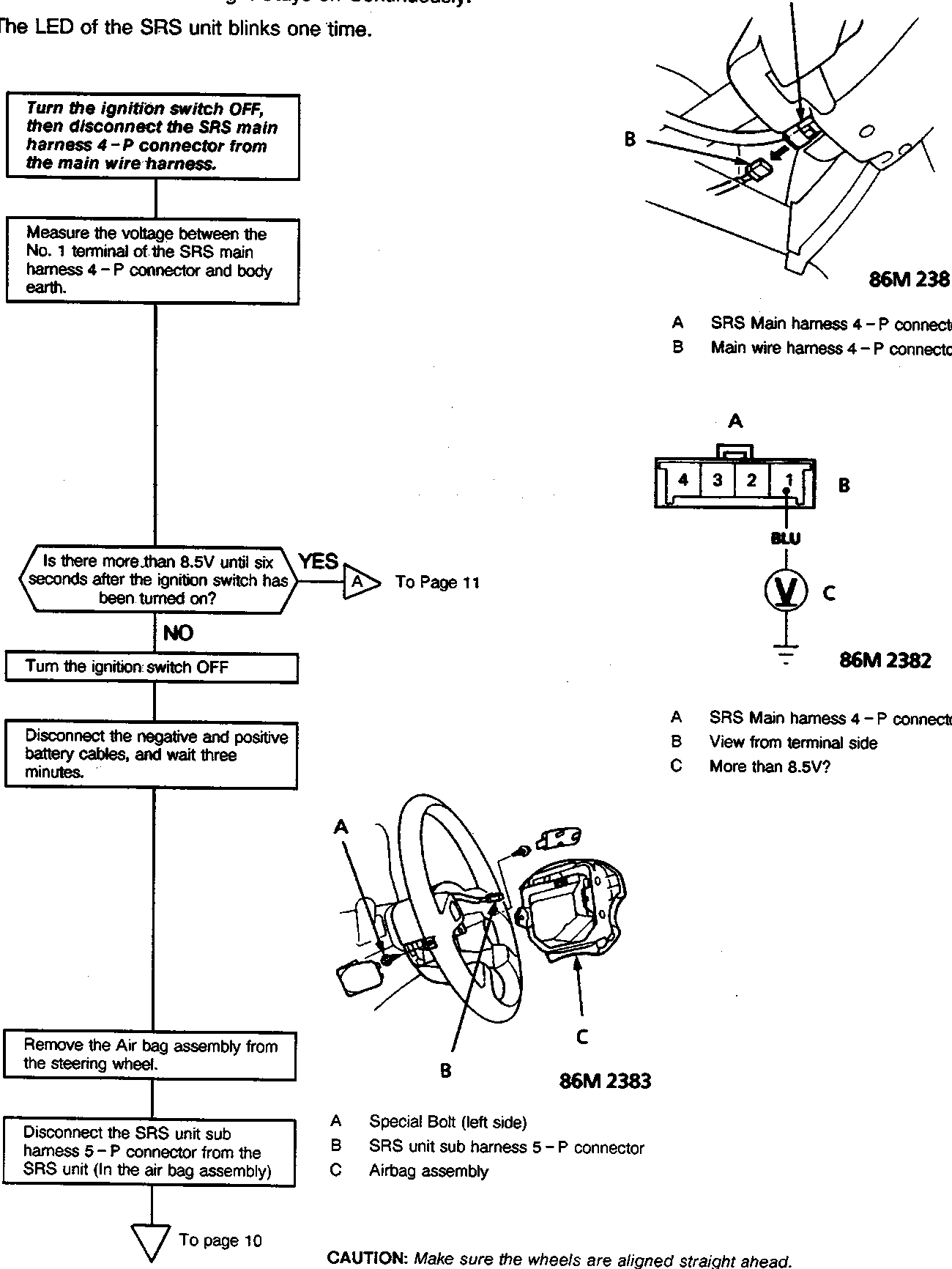

Fault: The SRS Indicator Light Stays on Continuously.

• The LED of the SRS unit blinks one time.

A   SRS Main harness 4 – P connector
B   Main wire harness 4 – P connector

Turn the ignition switch OFF, then disconnect the SRS main harness 4 – P connector from the main wire harness.

Measure the voltage between the No. 1 terminal of the SRS main harness 4 – P connector and body earth.

A   SRS Main harness 4 – P connector
B   View from terminal side
C   More than 8.5V?

Is there more than 8.5V until six seconds after the ignition switch has been turned on? YES → To Page 11

NO

Turn the ignition switch OFF

Disconnect the negative and positive battery cables, and wait three minutes.

A   Special Bolt (left side)
B   SRS unit sub harness 5 – P connector
C   Airbag assembly

Remove the Air bag assembly from the steering wheel.

Disconnect the SRS unit sub harness 5 – P connector from the SRS unit (In the air bag assembly)

→ To page 10

CAUTION: Make sure the wheels are aligned straight ahead. Remove the left airbag assembly mounting special bolt first (the safety switch will automatically turn off). Use a new special bolt for reinstalling the airbag.
