Supplementary restraint system (SRS)Flow charts · page 3 of 8

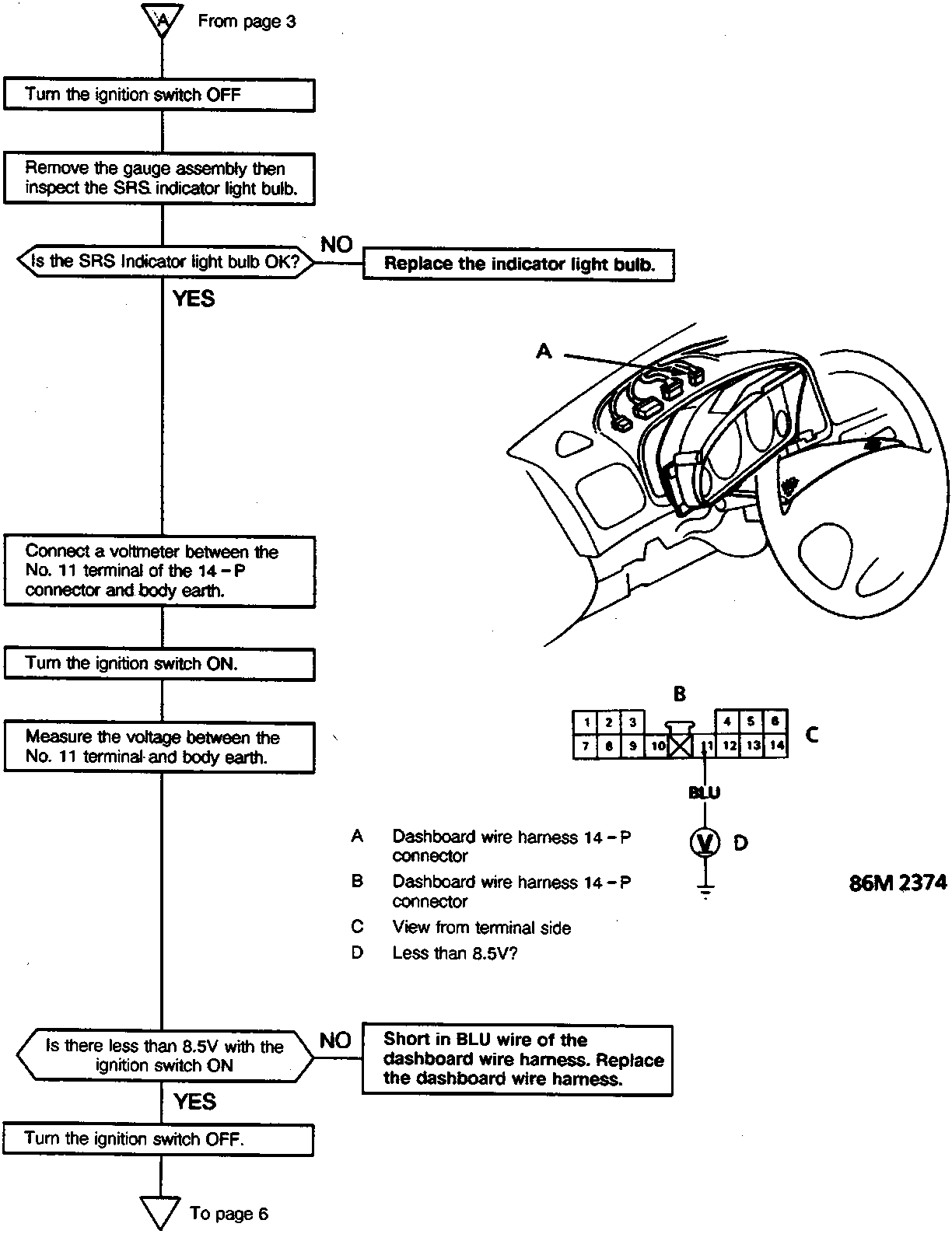

Flowchart diagram for SRS fault finding, including a dashboard illustration and connector terminal view

From page 3

Turn the ignition switch OFF

Remove the gauge assembly then inspect the SRS indicator light bulb.

Is the SRS Indicator light bulb OK?

  • NO: Replace the indicator light bulb.
  • YES

Connect a voltmeter between the No. 11 terminal of the 14 – P connector and body earth.

Turn the ignition switch ON.

Measure the voltage between the No. 11 terminal and body earth.

  1. A Dashboard wire harness 14 – P connector
  2. B Dashboard wire harness 14 – P connector
  3. C View from terminal side
  4. D Less than 8.5V?

Is there less than 8.5V with the ignition switch ON

  • NO: Short in BLU wire of the dashboard wire harness. Replace the dashboard wire harness.
  • YES

Turn the ignition switch OFF.

To page 6
