Flow charts (page 6 of 8)
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Precautions
Supplementary restraint system (SRS)Flow charts · page 6 of 8

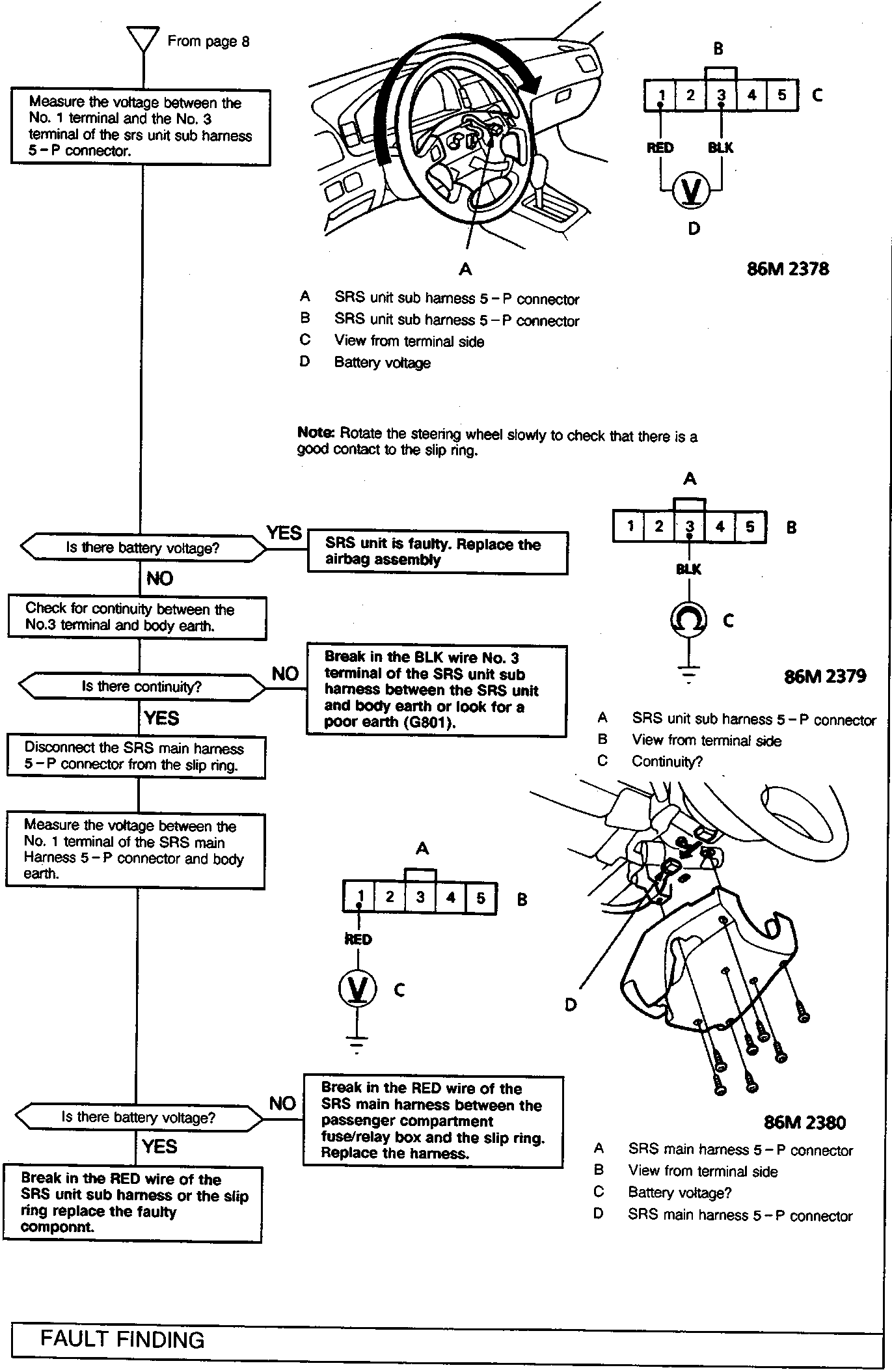

Measure the voltage between the No. 1 terminal and the No. 3 terminal of the srs unit sub harness 5-P connector.
B SRS unit sub harness 5-P connector
C View from terminal side
D Battery voltage
Note: Rotate the steering wheel slowly to check that there is a good contact to the slip ring.
Is there battery voltage?
- YES: SRS unit is faulty. Replace the airbag assembly.
- NO: Check for continuity between the No.3 terminal and body earth.
Is there continuity?
- NO: Break in the BLK wire No. 3 terminal of the SRS unit sub harness between the SRS unit and body earth or look for a poor earth (G801).
- YES: Disconnect the SRS main harness 5-P connector from the slip ring.
Measure the voltage between the No. 1 terminal of the SRS main Harness 5-P connector and body earth.
Is there battery voltage?
- NO: Break in the RED wire of the SRS main harness between the passenger compartment fuse/relay box and the slip ring. Replace the harness.
- YES: Break in the RED wire of the SRS unit sub harness or the slip ring replace the faulty component.
