Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual17 · Automatic gearbox
17 · Transmission

Automatic gearbox (page 2 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Automatic gearboxAutomatic gearbox · page 2 of 3

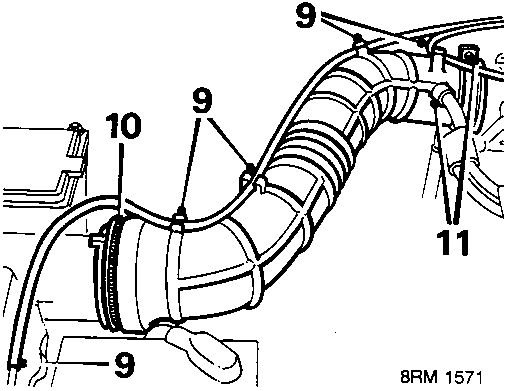

Diagram showing vacuum pipes and intake trunking connections with callout numbers 9, 10, and 11
  1. Disconnect vacuum pipe from air cleaner. Disconnect 2 vacuum pipes from intake trunking clips.
  2. Disconnect intake trunking from air cleaner.
  3. Slacken clip, remove intake trunking from throttle housing. Release clip and disconnect breather pipe from trunking.

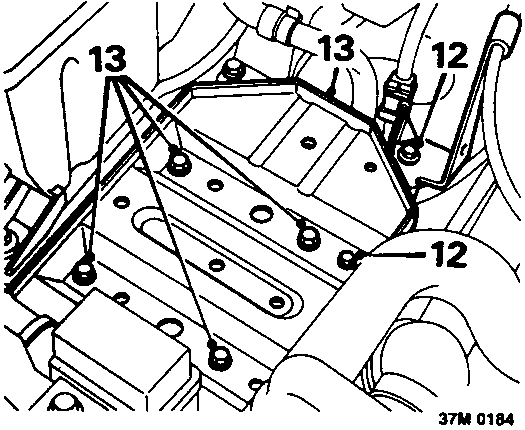

Diagram showing battery tray, pump feed hose, throttle cable bracket, and bolts with callout numbers 12 and 13
  1. ABS6: Remove 2 bolts securing pump feed hose and throttle cable bracket to battery tray.
  2. Remove 4 bolts, battery tray to body and remove battery tray.
  3. Remove starter motor, see ELECTRICAL – Repairs.

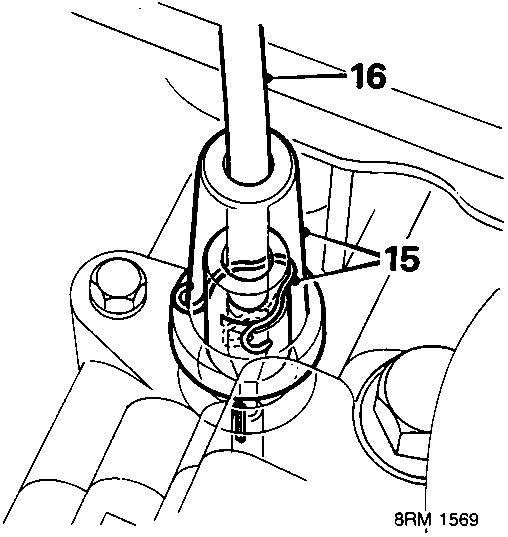

Diagram showing speedometer cable cover and retaining clip with callout numbers 15 and 16
  1. Release speedometer cable cover and remove speedometer cable retaining clip from slot in gearbox housing.
  2. Disconnect speedometer cable from gearbox.

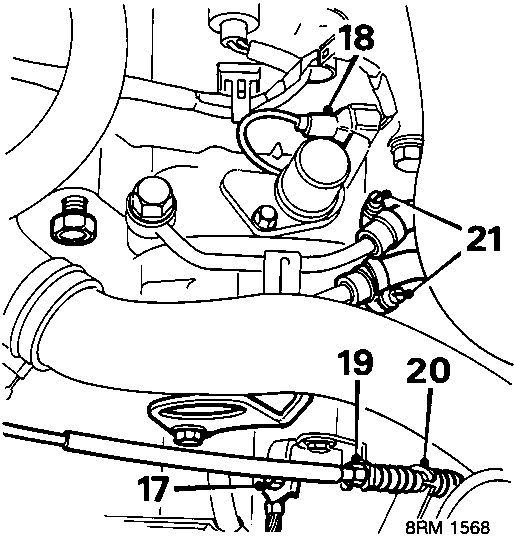

Diagram showing lock-up control solenoid valve, throttle control cable, oil cooler hoses, and earth lead with callout numbers 17 through 21
  1. Remove bolt, earth lead to gearbox and move lead aside.
  2. Disconnect lock – up control solenoid valve multiplug.
  3. Slacken locknut on throttle control cable.
  4. Release throttle control cable at lever.
  5. Slacken 2 clips, disconnect oil cooler hoses from pipes.

CAUTION: Plug the connections.

  1. Remove front exhaust pipe, see MANIFOLD & EXHAUST – Repairs.
  2. Remove intermediate drive shaft, see DRIVE SHAFTS – Repairs.
  3. Disconnect R.H. drive shaft from differential, see Differential oil seal – R.H. – Repairs.
  4. Remove R.H. tie rod, see REAR SUSPENSION.
