Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual14 · Clutch
14 · Transmission

Clutch (Clutch components – 1.4): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Clutch components – 1.4
ClutchClutch components – 1.4

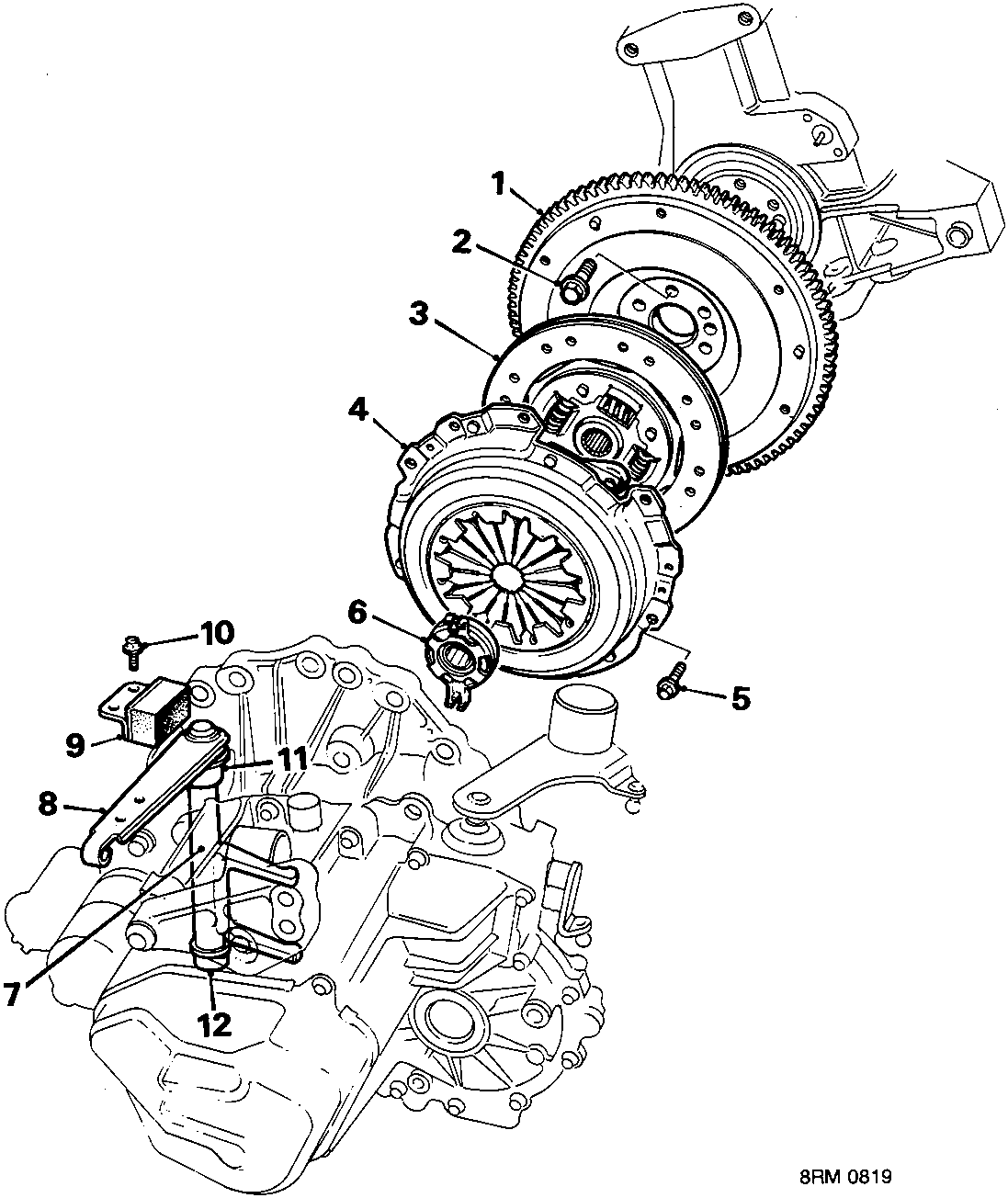

Exploded view diagram of the clutch assembly showing numbered components 1 through 12, including flywheel, pressure plate, clutch plate, release bearing, and release fork. Reference number 8RM 0819 is printed in the bottom right corner of the diagram.

CLUTCH COMPONENTS – 1.4

1. Flywheel8. Release lever
2. Flywheel bolts9. Mass damper
3. Clutch plate10. Mass damper bolts
4. Pressure plate11. Upper bush
5. Pressure plate bolts12. Lower bush
6. Release bearing
7. Release fork and shaft
