Clutch (Operation): Description and operation

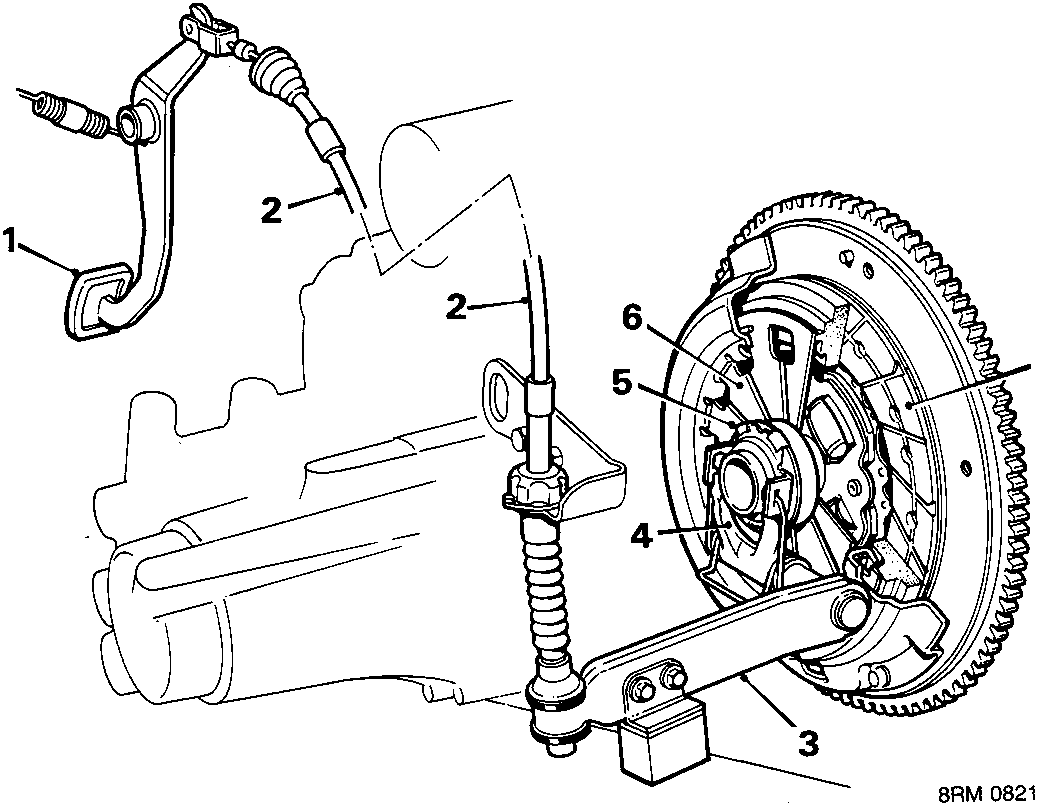

1.6 model illustrated

OPERATION

The diaphragm type clutch is operated via a self - adjusting cable on 1.4 and 2.0 models and an adjustable cable on 1.6 models.

When the clutch pedal(1) is depressed, the clutch cable(2) transmits movement to the release arm(3). The release fork(4), secured to the release shaft, changes the rotary movement of the release shaft into linear movement. The release bearing(5) is pushed against the diaphragm fingers(6) and releases spring pressure from the clutch plate(7).

When pressure is released from the clutch pedal, the diaphragm fingers push the release bearing back and force the clutch plate against the flywheel.
