ClutchClutch components – 1.6

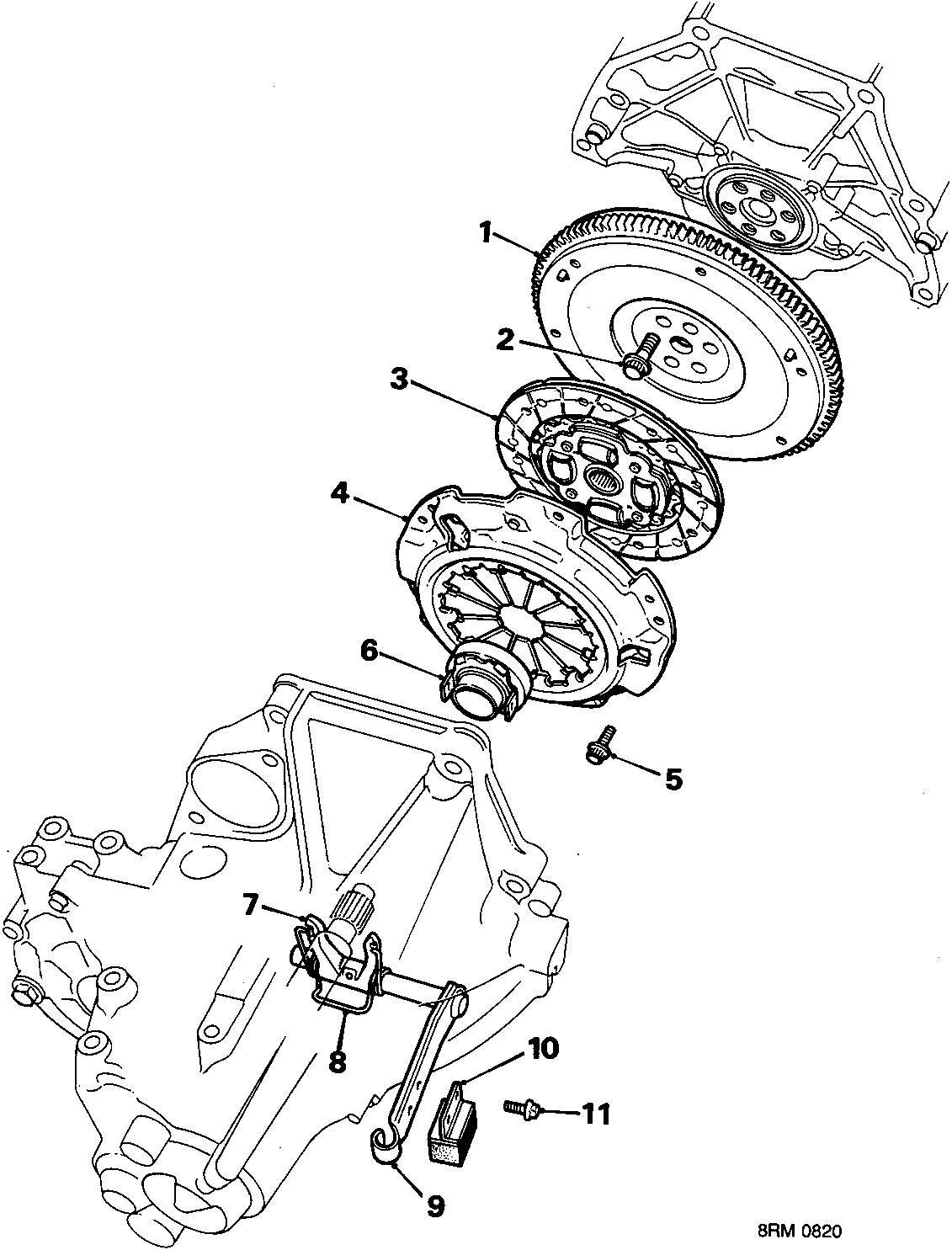

Exploded view diagram of clutch components including flywheel, clutch plate, pressure plate, release bearing, release fork, and mass damper with numbered callouts 1 through 11.

CLUTCH COMPONENTS – 1.6

1. Flywheel7. Release fork
2. Flywheel bolts8. Release fork spring
3. Clutch plate9. Release shaft
4. Pressure plate10. Mass damper
5. Pressure plate bolts11. Mass damper bolts
6. Release bearing
