Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual14 · Clutch
14 · Transmission

Clutch (Clutch components – 2.0): Description and operation

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Description and operation › Clutch components – 2.0
ClutchClutch components – 2.0

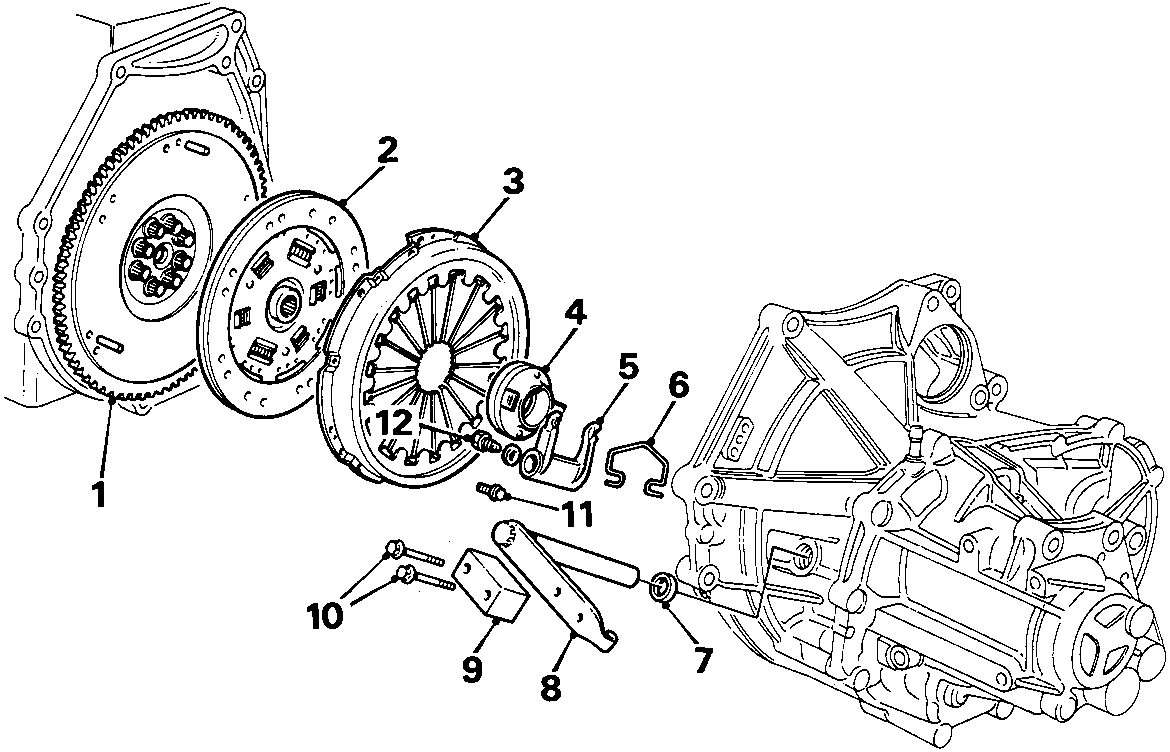

Exploded view diagram of the clutch assembly showing numbered components from the flywheel to the transmission input shaft.

CLUTCH COMPONENTS – 2.0

  1. Flywheel
  2. Clutch plate
  3. Pressure plate
  4. Release bearing
  5. Release fork
  6. Release fork spring
  7. Release shaft oil seal
  8. Release shaft
  9. Mass damper
  10. Mass damper bolts
  11. Pressure plate bolt
  12. Release fork bolt
