Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual14 · Clutch
14 · Transmission

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
ClutchRemove

Service Repair No. 33.25.05
1.4 MODEL SHOWN

Remove

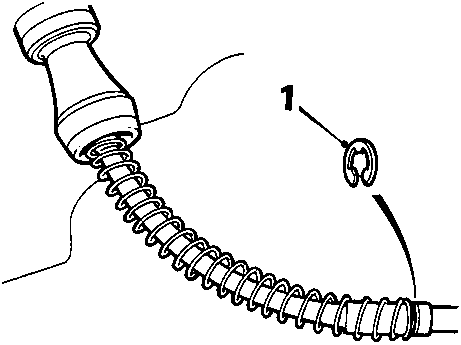

Diagram showing removal of 'C' clip from clutch spring to cable
  1. Remove 'C' clip clutch spring to cable.

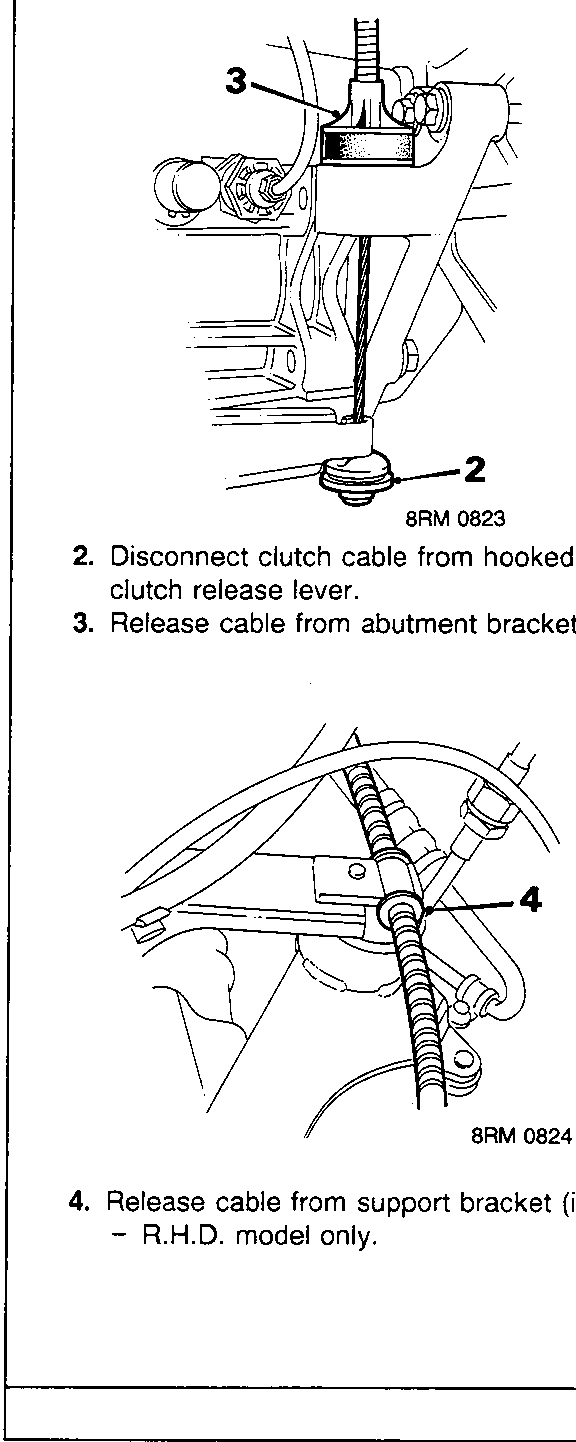

Diagram showing disconnecting clutch cable from hooked end of release lever and abutment bracket
  1. Disconnect clutch cable from hooked end of clutch release lever.
  2. Release cable from abutment bracket.
Diagram showing release of cable from support bracket on R.H.D. model
  1. Release cable from support bracket (if fitted)
    – R.H.D. model only.
Diagram showing release of inner cable from clutch pedal and bulkhead area
  1. Release inner cable from clutch pedal and pull cable through bulkhead into engine compartment.
  2. Release clutch cable from between hoses and cables at rear of engine and remove clutch cable.

Refit

  1. Route clutch cable around rear of engine and push slotted end through bulkhead.
  2. Connect inner cable to clutch pedal. Smear rubber bush with Castrol Girling RED Rubber Grease G1914 jelly and press bush into bulkhead tube so that steel washer is fully abutted.
  3. Feed clutch cable through abutment bracket and connect cable to hooked end of clutch release lever.
  4. Compress clutch cable spring and fit 'C' clip to retain spring.
  5. Secure cable to support bracket(if fitted) – R.H.D. model only
  6. To check operation of self adjust mechanism, pull clutch release lever through its full stroke and then release.
