Service Repair No. 33.25.05

Remove

1. Turn adjusting nut anti-clockwise to release cable adjustment.

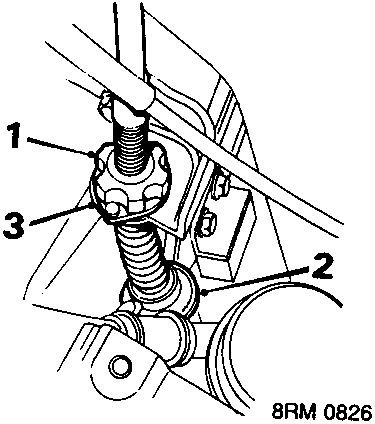

2. Raise release lever and disconnect clutch cable.
3. Release cable from abutment bracket.

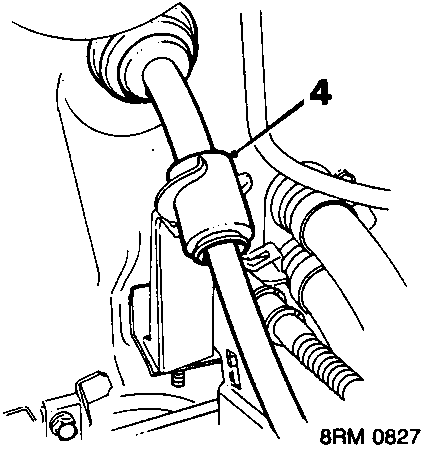

4. Release cable from support bracket.

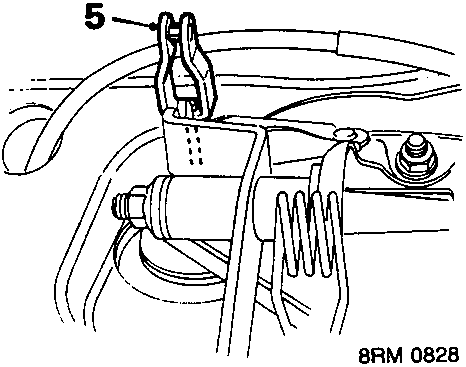

5. Release inner cable from clutch pedal and pull cable through bulkhead into engine compartment.
6. Remove clutch cable.

Refit

1. Push hooked end of cable through bulkhead and connect inner cable to clutch pedal.
2. Secure grommet to bulkhead and secure cable to support bracket.
3. Feed clutch cable through abutment bracket and connect cable to release lever.
4. Adjust clutch cable, see MAINTENANCE

CLUTCH ASSEMBLY AND RELEASE BEARING – 1.4

Service Repair No. 33.10.07

CAUTION: Clutch plates and pressure plates are manufactured by Valeo or A.P. and are not interchangeable between the two suppliers.

A clutch plate manufactured by Valeo must NOT be used with a pressure plate manufactured by A.P. or vice versa.

Valeo clutches have the Part No. applied with GREEN paint or in BLACK paint with a GREEN spot.

A.P. clutches have the Part No. applied with WHITE paint.

Remove

1. Remove gearbox assembly, see MANUAL GEARBOX 1.4 – Repairs.

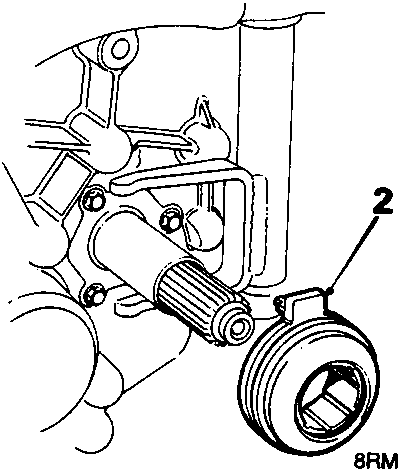

2. Remove release bearing from sleeve and release fork.
