ClutchClutch assembly and release bearing – 1.6

that locating tags on bushes engage slots in housing.

  1. Engage release bearing on fork and slide release bearing onto sleeve.
  2. Move release fork up and down to ensure it fits correctly against bearing and bearing slides freely.
  3. Fit gearbox assembly, see MANUAL GEARBOX 1.4 – Repairs.

CLUTCH ASSEMBLY AND RELEASE BEARING – 1.6

Service Repair No. 33.10.07

Remove

  1. Remove gearbox assembly, see MANUAL GEARBOX - 1.6 - Repairs.

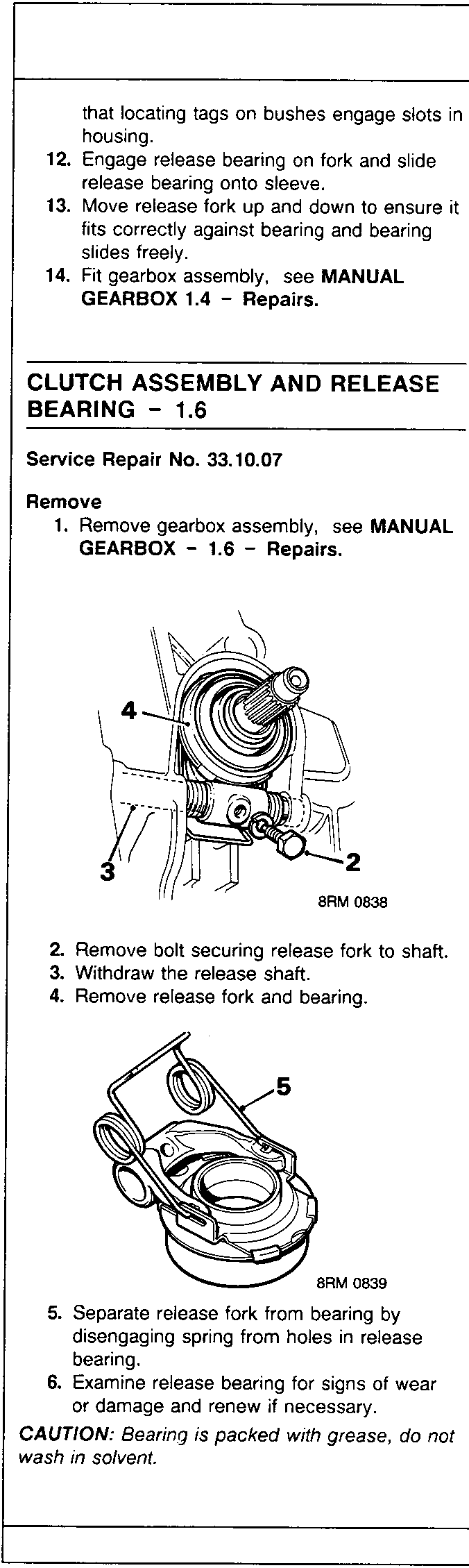

Diagram showing release shaft, release fork and release bearing with callout numbers 2, 3, and 4
  1. Remove bolt securing release fork to shaft.
  2. Withdraw the release shaft.
  3. Remove release fork and bearing.
Diagram showing release fork separated from release bearing with callout number 5
  1. Separate release fork from bearing by disengaging spring from holes in release bearing.
  2. Examine release bearing for signs of wear or damage and renew if necessary.

CAUTION: Bearing is packed with grease, do not wash in solvent.

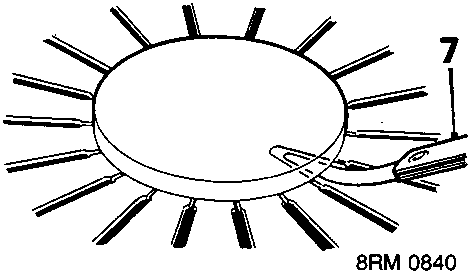

Diagram showing a circular flat plate placed across diaphragm fingers with feeler gauges inserted, callout number 7
  1. Place a circular piece of flat plate across diaphragm fingers and insert feeler gauges between plate and fingers. Renew pressure plate if clearance on any finger is outside service limit. Diaphragm finger clearance – service limit = 1.0 mm.

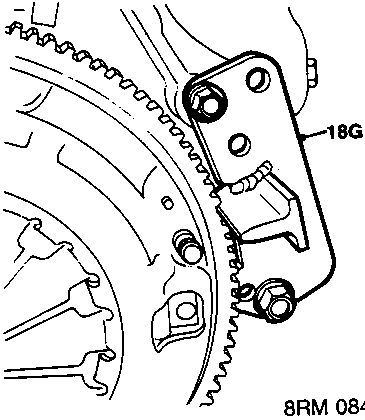

Diagram showing locking tool 18G 1571 attached to flywheel
  1. Lock flywheel using locking tool 18G 1571.
