Heating and ventilation (Operation): Description and operation

OPERATION

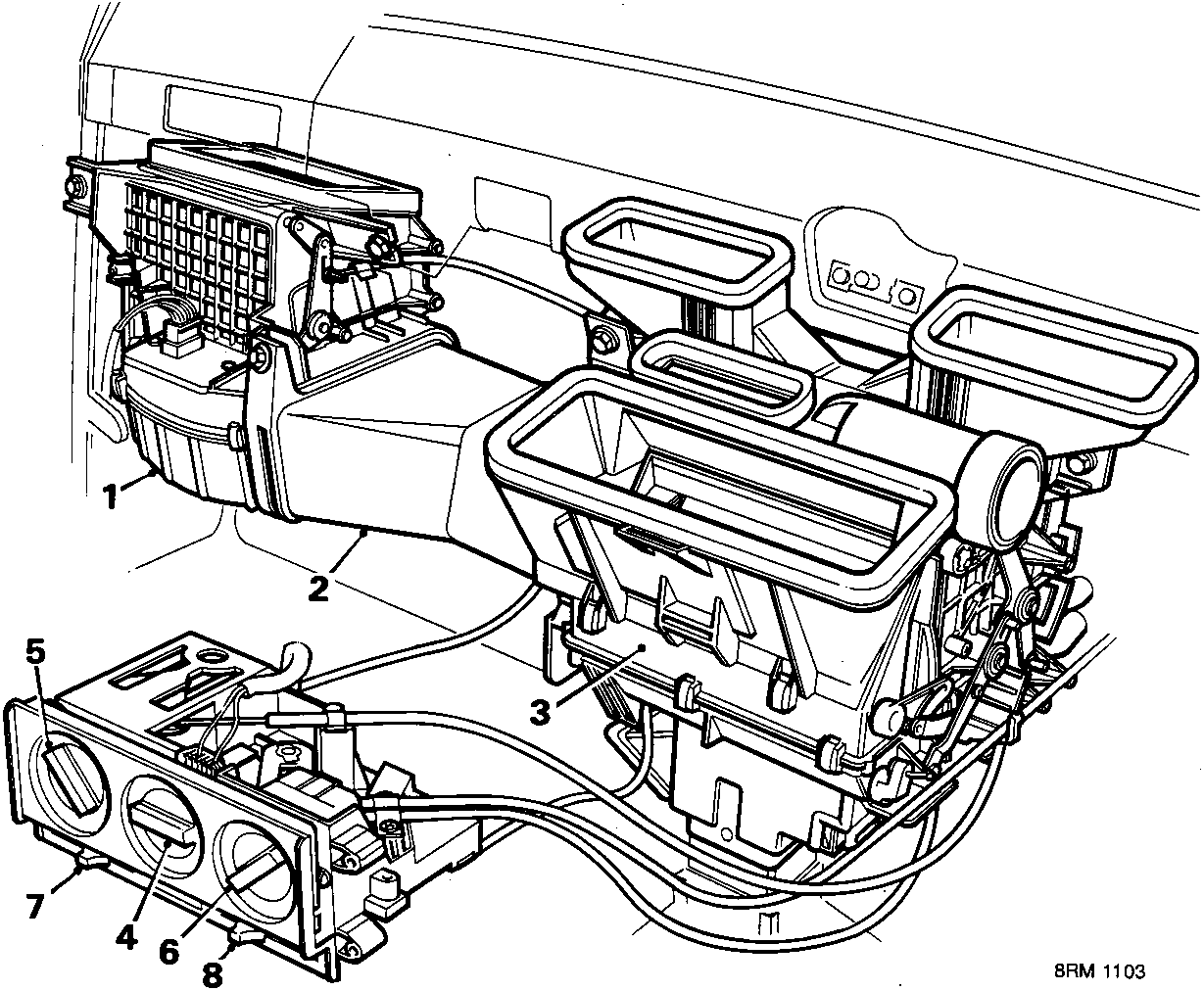

Air, drawn through the intake below the windscreen, passes through the blower unit (1), heater duct (2) and heater unit (3) to enter the interior of the car.

When the temperature control (4) is rotated towards the heated air position it opens a water valve in the engine cooling system allowing hot water from the engine to circulate through the heater matrix. Rotation of the temperature control (4) also adjusts the position of the blend flap in the heater unit to direct all, or a proportion of, the intake air through the heater matrix to be heated before entering the car interior.

The distribution of air entering the car through the heater is dependent on the positions of distribution flaps inside the heater unit. The distribution flaps are adjusted by rotation of the distribution control (5) to direct the air in various proportions to the vents at face level, foot level, windscreen and front doors.

When the blower switch (6) is switched off, the volume of air entering the blower unit depends on the ram effect of the car's forward motion. Four fan speeds are also available on the switch (6) to supplement the ram effect.

The air supply control (7) provides the facility to recirculate air inside the car in conditions when it is desirable not to draw in outside air. The control (7) operates a recirculation flap in the blower unit (1).

Operation of the thumbwheel in a side face level vent will provide unheated, unblown air from that vent regardless of the position of the distribtuion control (5).

Operation of the ambient air control (8) wil provide unheated blown air at the centre face level vents, provided the distribution control (5) is set not to supply air at face level.

When the distribution control (5) is set to supply air at face level, the unheated air supplied by control (8) will blend with the air supplied by control (5).
