Camshaft timing belt – 1.4 k16 (page 3 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Maintenance
MaintenanceCamshaft timing belt – 1.4 k16 · page 3 of 4

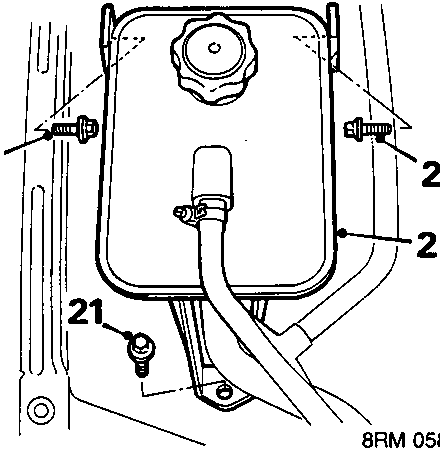

Diagram showing coolant expansion tank secured by three screws labeled 21, with the tank itself labeled 22.
  1. Remove 3 screws securing coolant expansion tank.
  2. Lift aside coolant expansion tank.

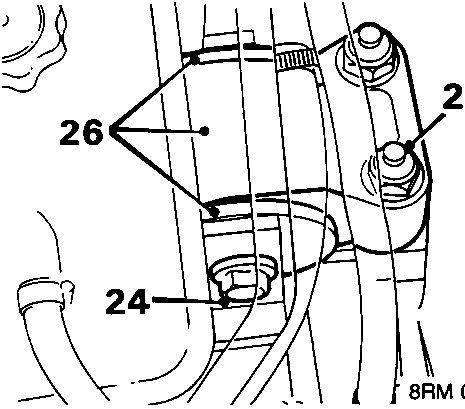

Diagram showing R.H. engine mounting assembly with nuts labeled 23, bolt labeled 24, and rubber washers labeled 26.
  1. Remove 2 nuts, R.H. engine mounting to engine.
  2. Remove bolt, R.H. engine mounting to body.
  3. Lower jack, supporting power unit, slowly to release engine mounting.
  4. Remove engine mounting and 2 rubber washers. Raise jack to restore power unit to normal position.

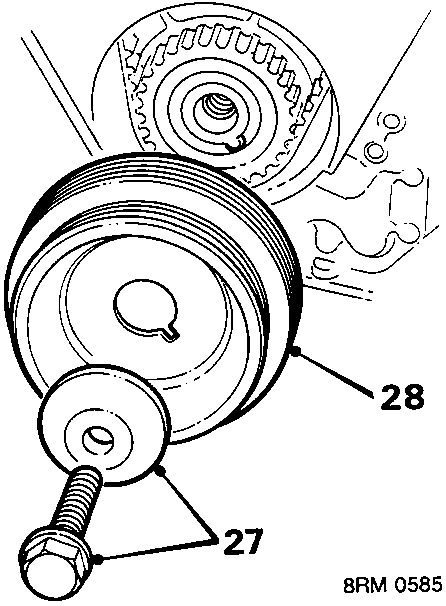

Diagram showing crankshaft pulley labeled 28 and its retaining bolt and washer labeled 27.
  1. Remove crankshaft pulley bolt and washer.
  2. Remove crankshaft pulley.

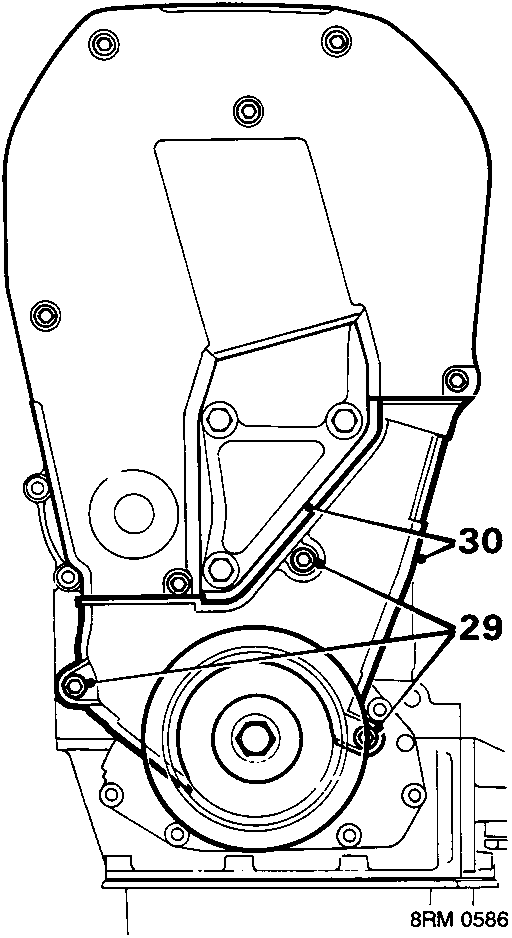

Diagram showing timing belt lower cover secured by screws labeled 29, with a rubber seal labeled 30.
  1. Remove 3 screws, timing belt lower cover.
  2. Remove lower cover and rubber seal.
