MaintenanceRefit · page 2 of 2
  1. Remove bolts securing tool 18G 1641, remove tool.
  2. Fit bolts securing crankshaft pulley to timing gear, tighten bolts to 10 Nm.
  3. Slacken nut securing tool 18G 1524, remove tool.
  4. Slacken timing belt tensioner pulley bolt sufficiently to allow tensioner pulley backplate to rotate without tipping the pulley.
  5. Remove timing pin tool 18G 1524 from flywheel.

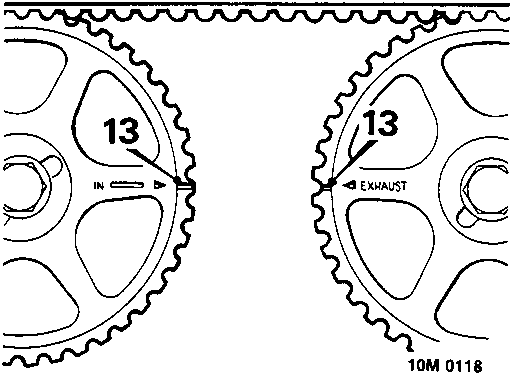

Diagram showing two camshaft gears with timing marks aligned. The left gear is labeled IN and the right gear is labeled EXHAUST. Both have a number 13 pointing to the timing mark. A reference number 10M 0118 is at the bottom right of the diagram.
  1. Rotate crankshaft 2 complete revolutions and align camshaft gear timing marks.
  2. Tighten tensioner pulley bolt to 25 Nm.
  3. Position timing belt centre cover, fit 5 bolts and tighten to 5 Nm.
  4. Lower engine and engage R.H. mounting bracket to mounting stud, fit nut and tighten to 85 Nm.
  5. Remove trolley jack.
  6. Position timing belt top cover, fit 5 bolts and tighten to 5 Nm.
  7. Fit drive belt.
