Dismantling and assembling gearbox

Make

SEAT

Model

Leon Mk1

Section

6-speed manual gearbox 02N › Gearbox mechanics,operation, construction,diff. › Dismantling and assembling gearbox

Power transmissionDismantling and assembling gearbox

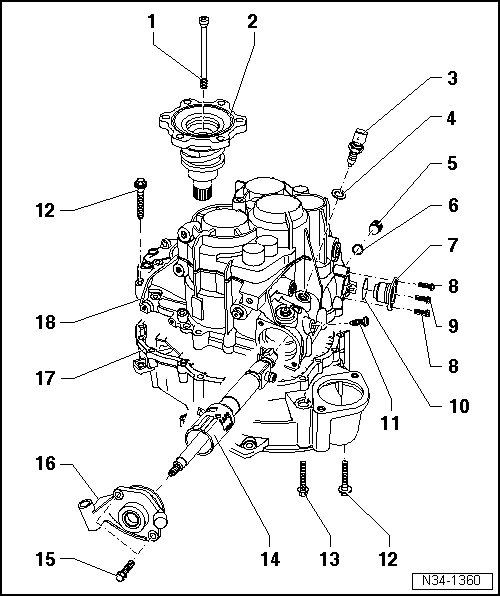

Removing and installing gearbox housing and selector mechanism through gearbox date 12 01 3

1 -	Countersunk bolt, 25 Nm

2 -	Flange shaft with compression spring

q	Removing and installing → Chapter

q	Assembling → Chapter

3 -	Reversing light switch, 20 Nm

4 -

Seal

q	Always renew

5 -	Oil drain plug

q	Torque setting → Fig.

6 -

Seal

q	Always renew

7 -	Sealing cover

8 -	Hexagon bolt, 20 Nm

q	Always renew

9 -	Hexagon bolt, 20 Nm

q	For selector shaft → Item to cover

q	Always renew

10 -

O-ring

q	Always renew

q	Insert in groove in cover

11 -	Locking bolt, 15 Nm

q	Always renew

q	For selector shaft guide

q	Insert with locking fluid -D 000 600 A2-

12 -	Hexagon bolt, 25 Nm and turn 45° further

q	With captive washer

q	Always renew

13 -	Hexagon bolt, 25 Nm and turn 45° further

q	Without washer

q	Always renew

14 -	Selector shaft

q	Dismantling and assembling selector mechanism on gearbox side through gearbox date 12 01 3 → Chapter

15 -	Hexagon bolt, 20 Nm

q	Always renew

16 -	Selector mechanism cover

q	Dismantling and assembling selector mechanism on gearbox side through gearbox date 12 01 3 → Chapter

17 -	Clutch housing

q	Repairing → Chapter

18 -	Gearbox housing

q	Repairing → Chapter
