Power transmissionLayshaft: adjusting

| Special tools and workshop equipment required |
| t
| Torque spanner -SAT 8010- |
| t
| Universal dial gauge bracket -T20020- |
| t
| Set for exterior point clamps, housing tracks without exit -T20140- |
| t
| Gear box repair set -U-40200A- |
| Adjust the layshaft when one of the following elements has been replaced: |
| l
| Layshaft (crown/pinion assembly) |
| l
| Layshaft roller bearings |
|
|
|
| –
| Fit the outer track of the layshaft roller bearings into the clutch housing, with a 0.65 mm thick shim. |
| –
| Locate the layshaft in its housing in the gearbox casing. |
| –
| Fit the bearing housing into the clutch casing, fit the bolts and tighten to 25 Nm +90 °. |
|
|
|
| –

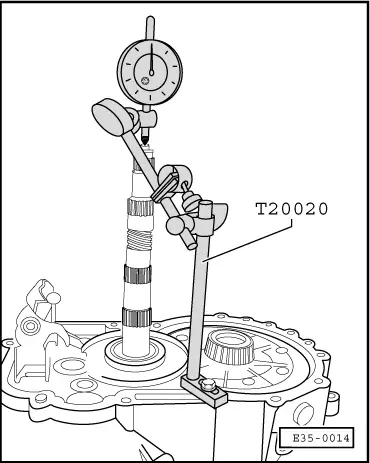

| Fit tool -T20020- on the gearbox casing with a dial gauge. Locate the end of the dial gauge on the layshaft. |
| –
| Adjust the dial gauge to “0” with a pre-tension of 1 mm. |

Note! | While measuring do not move the layshaft. The bearings may settle and make the measurement incorrect. |
| –
| Move the layshaft up and down, read the play with the dial gauge taking note of the measurement (e.g.: 0.3 mm). |
| The bearing tension is obtained by adding a constant pressure value (0.20mm) to the average value (0.3 mm) and the thickness of the shim fitted (0.65mm). |
|
|
|
| Shim fitted | 0.65 mm |
| + Average value | 0.30 mm |
| + Pressure (const. value) | 0.20 mm |
| Required adjusting washer thickness | 0.15 mm |
| The shim needed will be determined by the following table: |
|
|
|
| Thickness (mm) | Spare no. |
0.65 0.70
0.75 0.80 0.85
0.90 0.95 1.00
1.05 1.10 1.15
1.20 1.25 1.30
1.35 1.40 | 020 311 391 P 020 311 391 Q
020 311 391 020 311 391 A 020 311 391 B
020 311 391 C 020 311 391 D 020 311 391 E
020 311 391 F 020 311 391 G 020 311 391 H
020 311 391 J 020 311 391 K 020 311 391 L
020 311 391 M 020 311 391 N |
| The existance of different tolerances allows the exact calibration of the thickness of the washer needed. |
| If the thickness of washer needed is greater than the thickness of the washers in the table, two washers can be fitted that make up the required value. |
| –
| Once the necessary shim has been determined, remove the dial gauge. |
|
|
|
| –

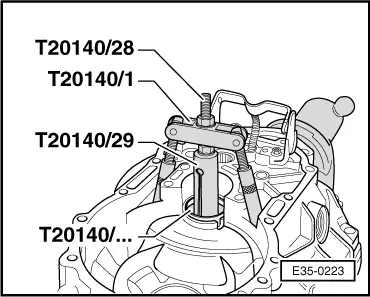

| Remove the layshaft outer roller bearing track from the clutch housing, with tool -T20140-. |
| Procedure for extracting the outer ring → Chapter, General instructions for gearbox repairs. |
| –
| Remove the 0.65 mm thick washer. |
| –
| Fit the shim of the correct thickness (in this case 1.15 mm) into the housing in the outer track of the layshaft roller bearing. |
|
|
|
| –
| Fit the layshaft outer roller bearing track to the clutch housing, with tool -U-40200A/10- and tool -U-40200A/12-. |
| –
| Lubricate the roller bearings with gearbox oil. |
| –
| Locate the layshaft in its housing in the gearbox casing. |
| –
| Fit the bearing housing into the clutch casing, fit the bolts and tighten to 25 Nm +90 °. |
|
|
|
