Power transmissionDifferential: adjustment

| Special tools and workshop equipment required |
| t
| Universal dial gauge bracket -T20020- |
| t
| Gearbox extractor set -U-40100- |
| t
| Gearbox repair set -U-40200- |
| Adjust the differential when one of the following elements have been replaced: |
| l
| Differential roller bearings |
|
|
|
| –
| Fit the outer track of the differential roller bearings into the gearbox casing, with an S2 1mm thick shim. Use tools -U-40200/10- and -U-40200/14-. |

Note! | The roller bearings and their corresponding outer tracks are matched pairs. Do not mix with other bearings. |
|
|
|
| –
| Fit the outer track of the differential conical roller bearings into the clutch housing, without the S1 shim. Use tools -U-40200/10- and -U-40200/14-. |

Note! | The roller bearings and their corresponding outer tracks are matched pairs. Do not mix with other bearings. |
| –
| Place the differential on the clutch housing. |
| –
| Fit the gearbox casing onto the clutch housing and tighten the securing bolts to 25 Nm. |
|
|
|
| –
| Fit tool -T20020- on the gearbox casing with a dial gauge. Locate the end of the gauge on the differential, interplacing tool -U-40200/11-. |
| –
| Adjust the dial gauge to “0” with a pre-tension of 1 mm. |
| –
| Move the differerential alternately in the direction of the arrows. |
| –
| Take note of the meaurement obtained (e.g. 0.9 mm). |

Note! | When measuring do not turn the differential, because the roller bearings may settle and the reading would be erroneous. |
| Die vorgeschriebene Vorspannung für die Lager erreicht man durch die Addition eines konstanten Druckwerts (0,4 mm) zum bei der Messung des S1 erhaltenen Werts (im Beispiel: 0,90 mm). |
|
|
|
| Average value | 0.90 mm. |
| + Pressure (const. value) | 0.40 mm. |
| S1 shim thickness needed | 1.30 mm. |
| The shim needed will be determined by the following table: |
|
|
|
| Thickness (mm) | Spare no. |
0.15 0.30 0.60
0.70
0.75 0.8 0.85
0.90 0.95 1.00
1.0 1.10 1.15
1.20 1.25 | 020 409 231 020 409 231 A 020 409 231 D
02K 409 210 A
02K 409 210 B 02K 409 210 02K 409 210 D
02K 409 210 E 02K 409 210 F 02K 409 210 G
02K 409 210 H 02K 409 210 J 02K 409 210 K
02K 409 210 L 02K 409 210 M |
| The existence of different tolerances allows the exact calibration of the thickness of the washer needed. |
| If the thickness of the shim needed is greater than the shims in the table, two shims that come to the required thickness can be fitted. |
| –
| Once the necessary S1shim has been determined, remove the dial gauge. |
| –
| Remove the bolts that secure both casings and separate the gearbox casing. |
| –
| Separate the diferential. |
|
|
|
| –

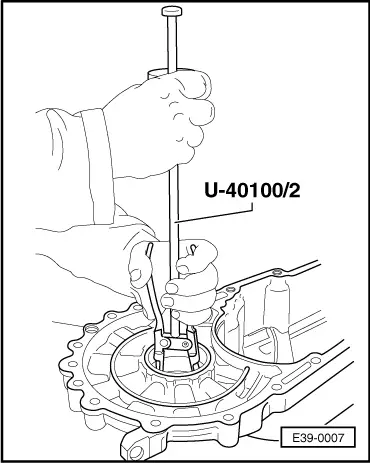

| Remove the differential outer roller bearing track from the earbox casing with tool -U-40100/2-. |
| –
| Fit the S1 shim of the correct thickness (in this case 1.3 mm) into the housing in the outer track of the differential roller bearing, |
| –
| If it is necessary to fit two shims, place the thickest one first. |
|
|
|
| –

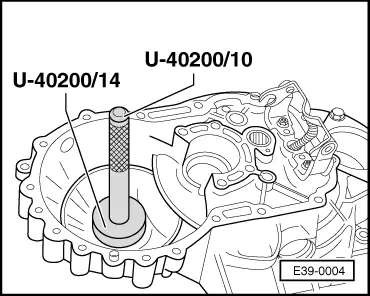

| Fit the differential outer roller bearing track to the gearbox casing, with tool -U-40200/10- and tool -U-40200/14-. |
| –
| Place the differential on the clutch housing. |
| –
| Fit the gearbox casing onto the clutch housing and tighten the securing bolts to 25 Nm. |
|
|
|
