Leon Mk2

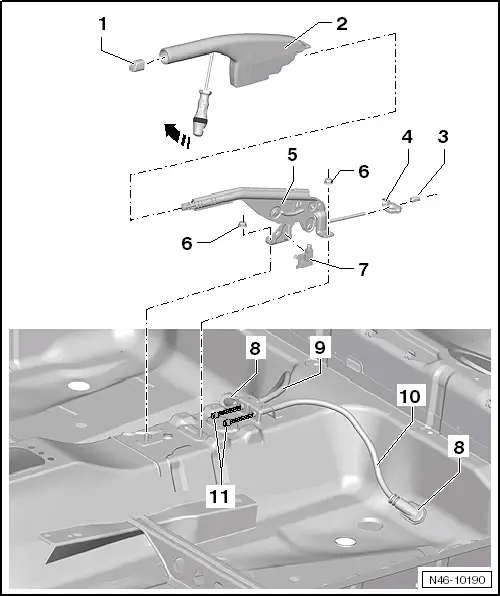

| Assembly overview - parking brake |
| 1 - | Pushbutton |
| q | Remove → Fig. |
| q | Will be destroyed when pulling off; must be renewed. |
| q | Push onto parking brake lever push rod and ensure both locking lugs are engaged by pulling slightly. |
| 2 - | Trim for handbrake lever |
| q | To remove, first pull off push button → Fig.. |
| q | Lever up release tab in rear lower area of handle with a screwdriver. |
| q | Then pull off forwards. |
| 3 - | Adjustment nut |
| q | Adjusting parking brake: |
| q | vehicles with drum brakes → Chapter |
| 4 - | Compensator |
| 5 - | Handbrake lever |
| q | Before removing, remove centre console → General body repairs, interior; Rep. gr.68. |
| 6 - | Hexagon nut, 23 Nm |
| 7 - | Parking brake switch -F321- |
| 8 - | Rubber grommet |
| 9 - | Right guide tube |
| 10 - | Left guide tube |
| 11 - | Brake cables |
| q | removing and installing → Chapter |
