Leon Mk2
| Front wheel brake: repairing |
Note!| t | After replacing the brake pads, depress the brake pedal a few times with the vehicle stationary, so that the pads move to their working position. |
| t | To extract brake fluid from the reservoir, use an extraction bottle, which should only come into contact with the brake fluid. Brake fluid is toxic and should never be sucked out through a flexible tube! |
| t | Before dismantling a brake caliper or separating a brake hose the brake pedal support must be fitted. |
| t | Syphoned (used) brake fluid must not be re-used. |
| t | Wheel bolt tightening torque: 110 Nm |

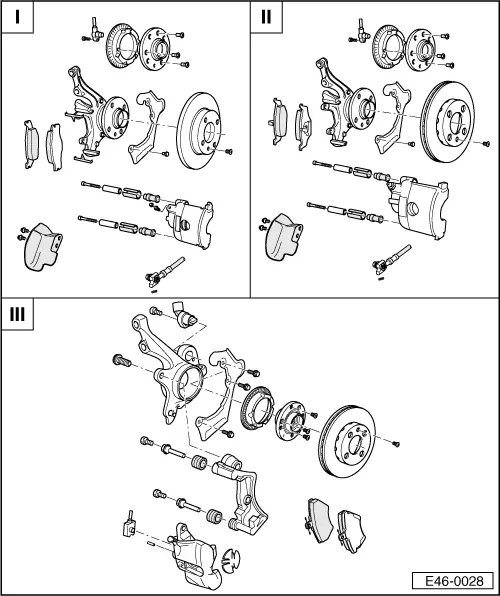

| I - | Front wheel brake: repairing (brake caliper VW I) → Chapter. |
| II - | Front wheel brake: repairing (brake caliper VW I) → Chapter. |
| III - | Front wheel brake: repairing (Lucas and Girling brake calipers) → Chapter. |
