Fabia Mk1

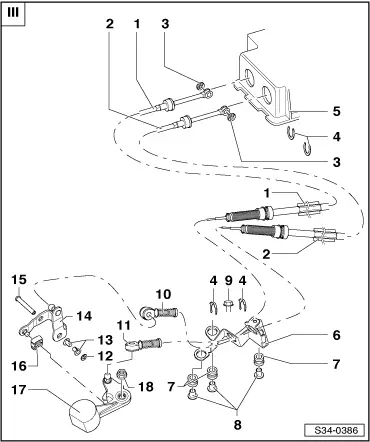

| Summary of components - Control cables |
Note| Grease bearing and friction surfaces with Polycarbamide Grease -G 052 242 A2-. |
| 1 - | Shift cable |
| q | press onto shift lever guide |
| q | Fitting position → Chapter |
| 2 - | Selector cable |
| q | at selector angle plate |
| q | Fitting position → Chapter |
| 3 - | Lock washer |
| 4 - | Lock washer |
| q | do not damage cables when removing |
| 5 - | Shift housing |
| 6 - | Support |
| 7 - | Grommet |
| q | mounting of support to gearbox |
| 8 - | Spacer |
| 9 - | 25 Nm |
| q | 3 pieces |
| q | for support |
| 10 - | Cable lock |
| q | for selector cable at relay lever |
| 11 - | Cable lock |
| q | for shift cable at gearbox shift lever |
| 12 - | Lock washer |
| 13 - | Bushing |
| 14 - | Reversing lever |

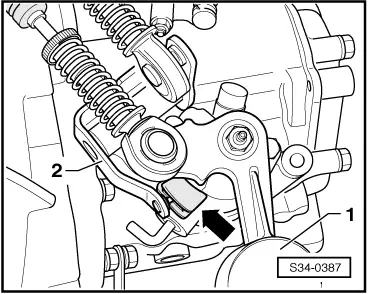

| q | Fitting position → Fig. |
| 15 - | Bearing bolt |
| q | for bell crank lever |
| 16 - | Sliding shoe |
| 17 - | Gearshift lever |
| q | with balancing weight |
| q | insert in such a way that the interrupted tooth-pitch is opposite the gearshift shaft |
| q | after installing set shift mechanism → Chapter |
| q | Fitting position → Fig. |
| 18 - | 25 Nm |
