Running gearRemoving and installing the hand-brake cable
Removing and installing the hand-brake cable
Removing:
–  Release the hand-brake.
–  Remove storage compartment or arm rest → Body Work; Rep. gr.68.

–  Release resetting nut -3- and unhook hand-brake cables -1- from compensating clamp -2-.
–  Remove wheel.
–  Raise vehicle.
  S42-0282
–  Unclip the handbrake cable out of the clips on the rear axle assembly and body -arrows-.
Vehicles with drum brakes
–  Remove the brake drum → Chapter.
–  Unhook the hand-brake cable from the brake lever.
–  Pull hand-brake cable out of brake carrier.
  S42-0286
Vehicles with disc brakes
–  Lever out the clip -1- using a screwdriver and remove towards the bottom or slacken the spring bushing for the hand-brake cable from the bracket on the brake caliper (depending on the version).
–  Press the hand-brake lever -2- in the -direction of the arrow- and while doing so unhook the hand-brake cable -3-.
Continued for all vehicles
  N46-0176
–  Pull hand-brake cable -2- in -the direction of the arrow- out of the guide tube -1-.
Installing:
Installation is carried out in the reverse order.
Removing and installing the hand-brake cable – Skoda Fabia Mk2  Note
When installing the hand brake cables, pay attention to the fitting position.
Fitting position of the hand-brake cables
Removing and installing the hand-brake cable – Skoda Fabia Mk2  Note
Fitting position of the hand-brake cables is identical on vehicles with drum or disc brake (only version with drum brake is shown).
–  The hand-brake cables must be clipped in.
  S46-0082

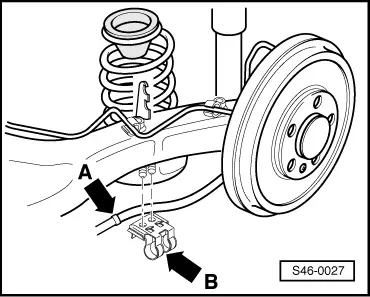

–  The clamping ring -arrow A- at the hand-brake cable must rest in the centre of the clip -arrow B-.
Removing and installing the hand-brake cable – Skoda Fabia Mk2  Note
Before setting the hand-brake, slightly pretension the hand-brake cable with the adjusting nut at the compensation clamp.
–  Setting the hand-brake:
   Vehicles with disc brakes → Chapter.
   Vehicles with drum brakes → Chapter.
  S46-0027
Tightening torque:
Wheel bolts → Chapter
