Setting the shift mechanism

Make

Skoda

Model

Superb

Section

Manual gearbox 01E › Gearbox mechanics,operation, construction,diff. › Setting the shift mechanism

Power transmissionSetting the shift mechanism

Setting the shift mechanism The following are required for correct setting of the shift mechanism: t  Operating and transmission elements of the shift mechanism are in perfect condition. t  Shift mechanism operates freely. t  Gearbox, clutch and clutch control in perfect condition. l  Gearbox in Neutral. –  Carefully lever off the cover from the centre console.

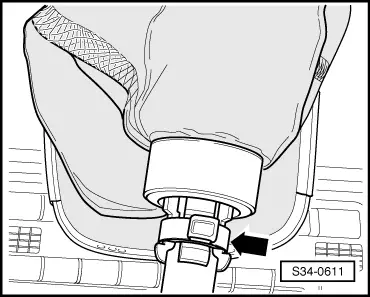

–  Turn cover inside out. –  Carefully open clamp -arrow- and pull off gearshift knob together with the cover.

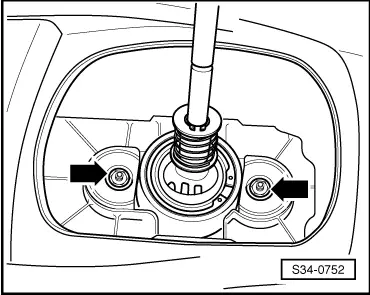

–  Unscrew the cover for the shift housing -arrows-.

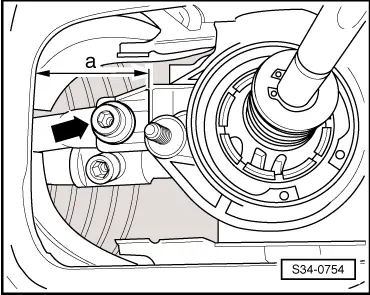

–  Measure the gap between body (body) and shift mechanism. l  The gap -a- must be 43 mm. If this is not the case, set gap -a- as follows: –  Loosen the screw -arrow- of the push rod. l  The push rod - rear can be moved easily onto the push slide of the shift mechanism. –  Set dimension -a- by moving the push rod - rear. –  Tighten screw -arrow- of pushrod with tightening torque.

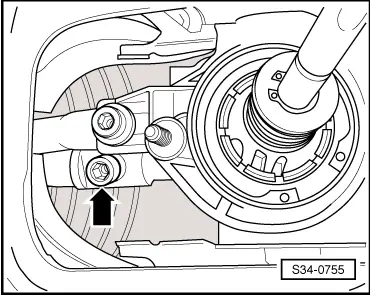

–  Loosen screw -arrow- of shift rod. l  The shift rod/shift mechanism joint should move freely.

–  Set the shift lever so that it is pointing slightly to the right of the direction of travel -arrow- and is set back slightly. –  Tighten screw of shift rod with tightening torque.    The shift lever setting should not be changed while doing this. Check for proper operation l  Shift lever must be in Neutral, in the gate of 3rd/4th gear. –  Depress clutch. –  Shift through all gears several times. Pay particular attention to proper operation of the reverse gear lock. l  Shift lever must shift automatically from reverse gear gate to the 3rd/4th gear gate. If a gear catches when engaged again, set the shift mechanism again. –  Install the cover for the gearbox housing. –  Mount the gearshift knob with cover.

Tightening torques

Component	Nm
Shift rod to shift fork/gearshift lever	→ Chapter
Push rod - front to rear push rod	→ Chapter
Cover on push rod - rear	→ Chapter

06 Transmission
