Supra L6-3.0L DOHC (7M-GE) (1990)
/Page-234002.png)

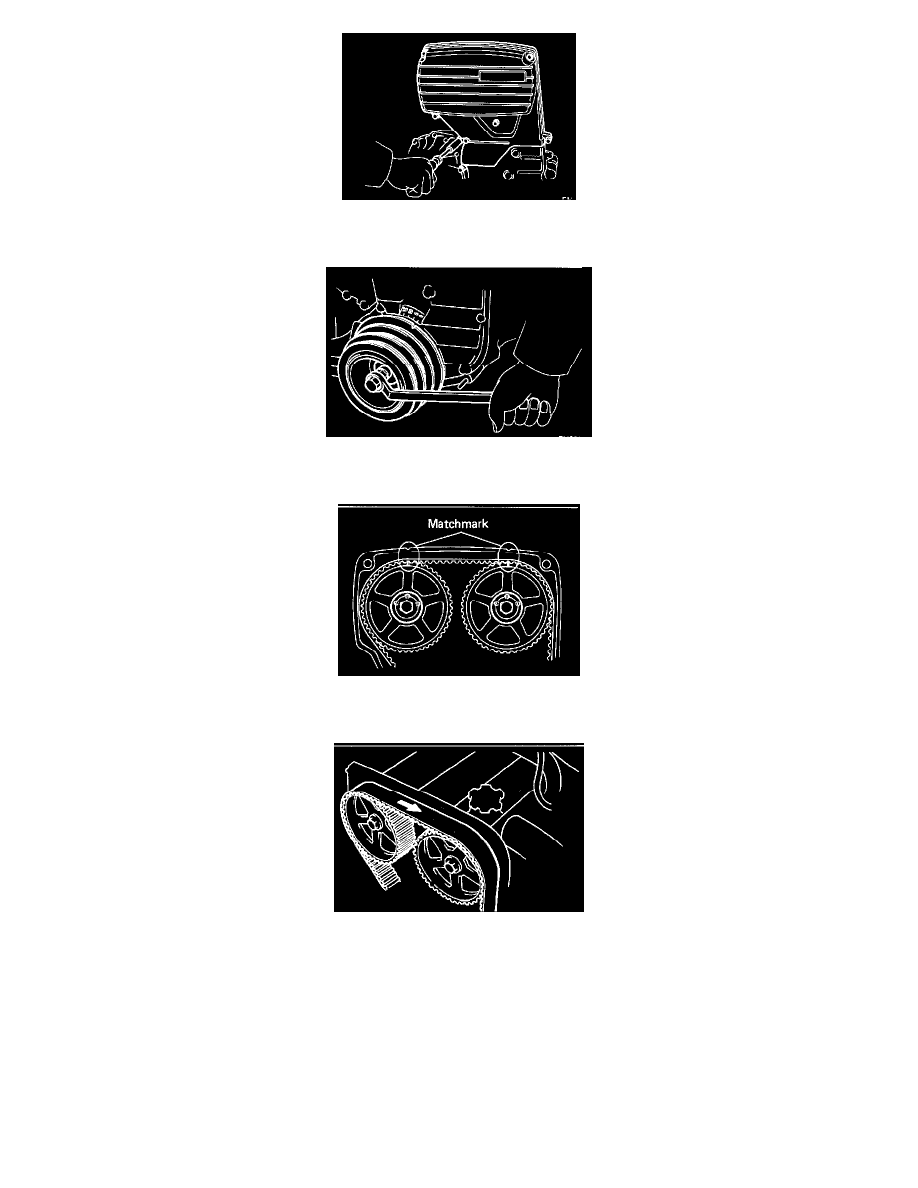

7. REMOVE NO.3 TIMING BELT COVER
Remove the five bolts, nut and No.3 timing belt cover with the gasket.
8. SET NO.1 CYLINDER AT TDC/COMPRESSION
(a) Turn the crankshaft pulley and align its groove with the "0" mark on the No.1 timing belt cover.
(b) Check that the matchmarks on the camshaft timing pulleys and No.2 timing belt cover are aligned. If not, turn the crankshaft pulley one
complete revolution.
9. REMOVE TIMING BELT FROM CAMSHAFT TIMING PULLEYS
NOTE: If reusing the timing belt, draw a direction arrow on the belt (in direction of engine revolution).
