Toyota Tundra 2WD V6-4.0L (1GR-FE) (2005)15 · Body and Frame
15 · Body & interior

Tailgate: Specifications

Make
Toyota
Model
Tundra 2WD
Engine
V6-4.0L (1GR-FE)
Year
2005
Section
Tailgate › Specifications
Body and FrameSpecifications · page 1 of 5

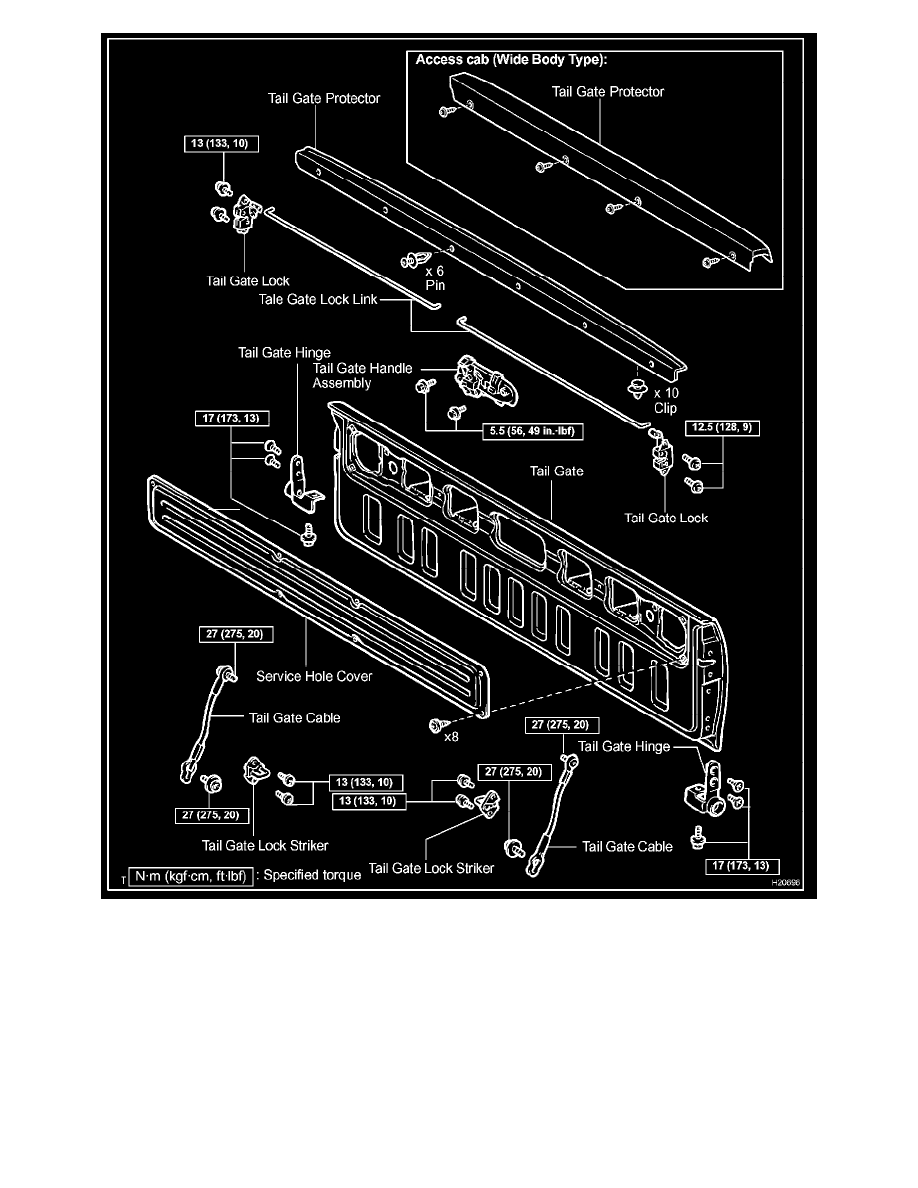

Tailgate: Specifications – diagram from the Body and Frame chapter of the Toyota Tundra 2WD V6-4.0L (1GR-FE) (2005) factory manual.

Diagram: Tailgate: Specifications – Toyota Tundra 2WD V6-4.0L (1GR-FE) (2005)

Tail Gate
