PaintVehicle identification plate, replace
Replace vehicle identification plate The identification plate contains special information about paint quality and the vehicle colour. The vehicle external colour is specified by either a 3-digit colour code or a 2-digit colour code, depending on the production plant, with the suffix "L" (internal code).
|
3-digit codes: |
|
|
|
Letter "E" = |
= |
Enamel/synthetic resin paint |
|
Letter "A" = |
= |
Acrylic paint |
|
3-digit no. |
= |
Paint number |
|
|
|
|
|
Example: E 474 |
= |
synthetic resin coat, colour: Casablanca white |
|
2-digit codes: |
|
In general synthetic resin paint |
|
2-digit no. = colour code |
|
|
|
Example: 10L = colour: Casablanca white |
|
|
Replace vehicle identification plate (continued)

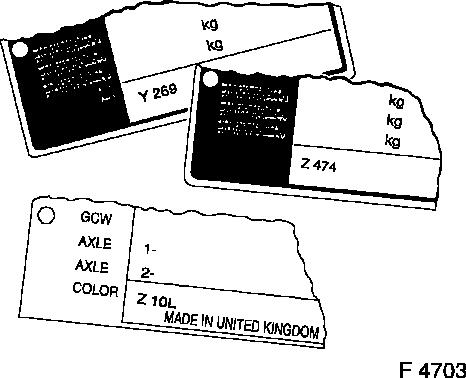

 Important! This information refers to identification plates as of Model Year '96. The development of environmentally compatible solid two-coat paints in all production plants has led to the introduction of the code letter "Z" or "Y" as paint information on the identification plate. ""Z" = two-coat paint (solid two-coat, metallic, mineral effect). "Y" = single-coat. Vehicles labelled with "Z" or "Y" are painted as before according to the familiar paint systems from the current "Paint Repair Systems" brochure. Notice: Paint vehicles labelled with "Z" according to the systems 2, 4, 6, 8. Paint vehicles labelled "Y" according to the systems 1, 3, 5, 7. The Service Area will forward the "General Accessories" (Paint Overview) reference lists with two and three digit colour designations and colour codes on microfiche. |
|
Replace vehicle identification plate (continued) Official part:
|
1 |
Manufacturer's designation |
|
2 |
Operating permit No. or type |
|
3 |
Vehicle identification No. (VIN) |
|
4 |
Permissible total weight in kg |
|
5 |
Permissible total comibination weight in kg |
|
6 |
Permissible front axle load in kg |
|
7 |
Permissible rear axle load in kg |
Non-official part:
|
8 |
Internal production identification number |
|
9 |
External vehicle colour, interior equipment (and where applicable program memory code for electronic compoonents) |
|
10 |
if applicable further, generally legally required data for certain countries outside the EU |
|
|
Notice: In the event of replacement, the "self-adhesive" vehicle identification plate is replaced by the familiar aluminium plate and as before fastened to the upper fixing holes in the air deflector panel.
|
|
