Vauxhall Astra G03 · Paint
03 · Body & interior

Plastics (Codes - Examples)

Make
Vauxhall
Model
Astra G
Section
Painting Repair Operations › Other Information › Plastics (Codes - Examples)
PaintPlastics (Codes - Examples)

Plastics (Codes – Examples)

ABS =

Acrylonitrile-butadiene (styrene polymer)

PA =

Polyamide

PP =

Polypropylene

EPDM =

Ethylene propylene diene rubber

PC =

Polycarbonate


Object Number: 2398116  Size: DEFAULT

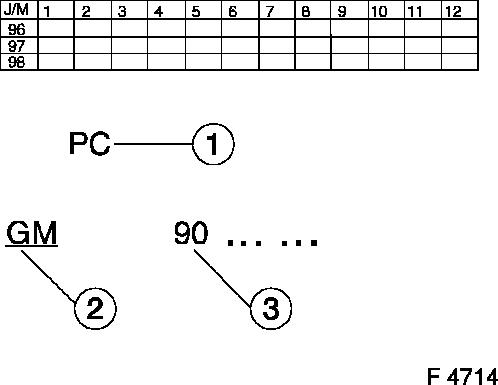

1

PC

Plastic designation

2

GM

Vehicle manufacturer

3

90...

Part number


Object Number: 2393182  Size: DEFAULT


Caution

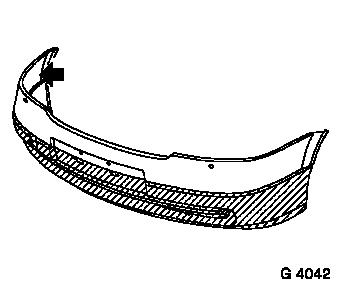

Plastic parts designation. Usually embossed on rear of part.
